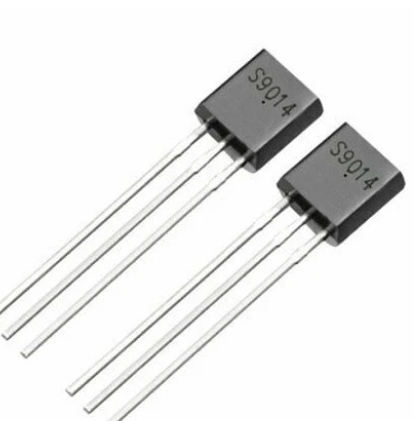

9014 TRANSISTOR NPN SMALL SIGNAL TRANSISTOR CDIL 9014

Product Overview:

A through-hole NPN silicon epitaxial planar small-signal bipolar junction transistor housed in a standard TO-92 plastic package. Engineered specifically for high-gain, low-noise preamplifier and small-signal amplification stages, it features a high current gain ($h_{FE}$) and an exceptionally low noise figure. It is ideal for audio preamplifiers, signal processing circuits, low-power switching, and sensor input networks, frequently serving as the complementary NPN pair to the 9015 PNP transistor.

Core Specifications:

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-92

• Function: NPN Low-Noise Small-Signal Transistor

• Maximum Collector-Emitter Voltage ($V_{CEO}$): 45V

• Maximum Continuous Collector Current ($I_C$): 100mA

• Maximum Collector Power Dissipation ($P_C$): 450mW (at ambient temperature $T_a = 25^\circ\text{C}$)

• Typical Noise Figure ($NF$): 0.9 dB (Typical) to 10 dB (Maximum)

• Common Marking Code: 9014 (often preceded by a gain classification letter like B, C, or D)
