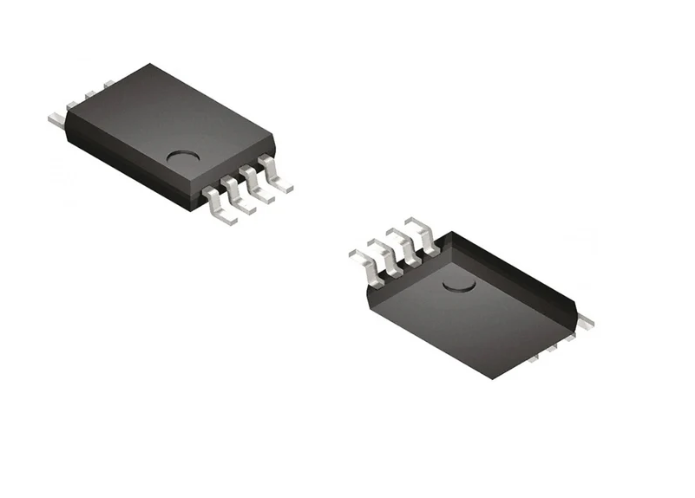

8205LA SMD MOSFET N-Channel TSSOP-8 20V 6A FM 8205LA

Product Overview

A surface-mount dual N-Channel power MOSFET designed for low-voltage, high-efficiency power management and lithium-ion battery protection circuits. It utilizes advanced high-cell-density trench technology to provide exceptionally low on-resistance and an optimized gate charge in a highly compact footprint.

Note: This component features a dual configuration containing two N-Channel MOSFETs (often in a common-drain connection) within one TSSOP-8 package.

Core Specifications

• Manufacturer: FM (Fine Made Microelectronics / Fuman Elec)

• Package Type: TSSOP-8

• Function: SMD MOSFET (Dual N-Channel)

• Voltage Rating: 20V

• Current Rating: 6A

• Power Dissipation: 1.98W

• Static On-Resistance ($R_{DS(on)}$): ~22 mΩ (typical @ $V_{GS}$ = 4.5V)

• Part Number: 8205LA
