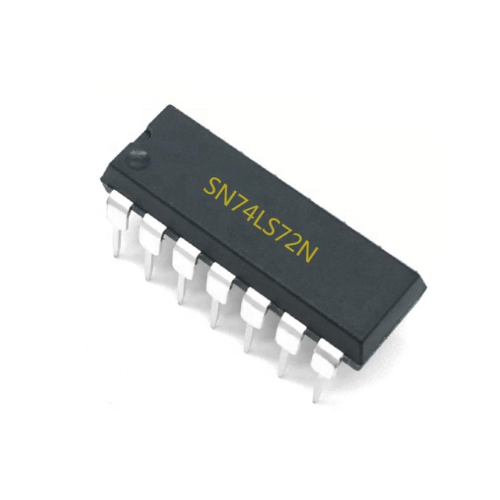

74LS72 IC AND-Gated J-K Master-Slave Flip-Flop DIP-14 74LS72

Product Overview

The 7472 is an AND-gated J-K master-slave flip-flop. It operates on the master-slave principle, where the clock pulse regulates the state of coupling transistors that connect the master and slave sections. The device features both preset and clear inputs for asynchronous control, along with AND-gated J-K inputs for synchronous operation.

Core Specifications

• Manufacturer: Texas Instruments

• Package Type: Available in Plastic and Ceramic DIPs and Ceramic Flat Packages

• Function: AND-Gated J-K Master-Slave Flip-Flop with Preset and Clear
