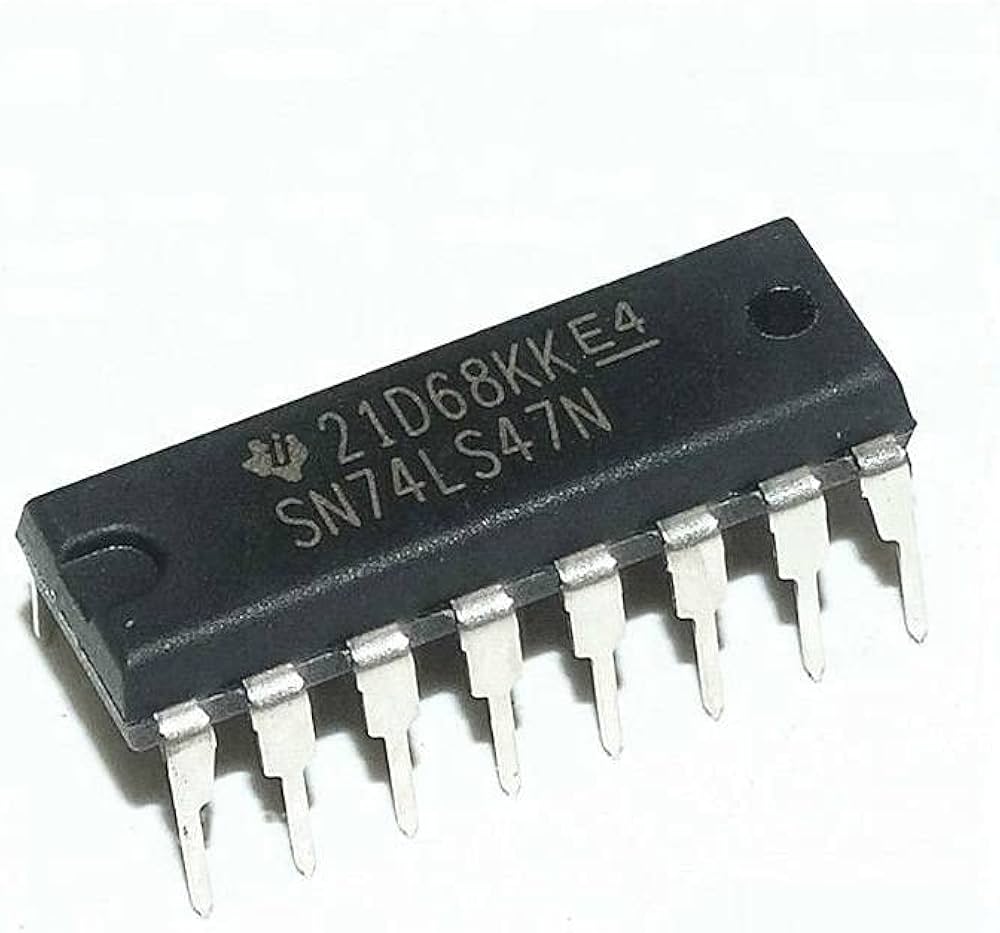

74LS47 IC BCD to 7-Segment Decoder/Driver 74LS47

Product Overview: SN74LS47

The SN74LS47 is a BCD-to-seven-segment decoder/driver manufactured by Texas Instruments. It is designed to accept a 4-bit Binary Coded Decimal (BCD) input and translate it into the appropriate signals to drive a common-anode seven-segment LED display. It features active-low, open-collector outputs capable of driving indicators directly.

Core Specifications & Features

• Manufacturer: Texas Instruments

• Function: BCD-to-seven-segment decoding.

• Output Type: Open-collector outputs (active-low).
