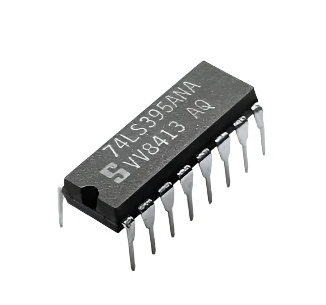

74LS395 IC 4-Bit Shift Register with 3-State Outputs DIP-16 74LS395

Product Overview: A 4-bit shift register featuring parallel-in, serial-in, and 3-state outputs, designed for cascading applications.

Core Specifications:

• Manufacturer: Texas Instruments

• Component Type: 4-Bit Shift Register

• Outputs: 3-State, active-low parallel outputs (QA, QB, QC, QD) and a standard active-low serial output (QD')

• Loading: Asynchronous parallel or serial data entry

• Cascading capability: Can be directly cascaded

• Supply Voltage Range: 4.75 V to 5.25 V

• Operating Temperature Range: 0°C to 70°C

• Input Features: Buffered clock and mode controls

• Logic Compatibility: Fully compatible with TTL and CMOS logic
