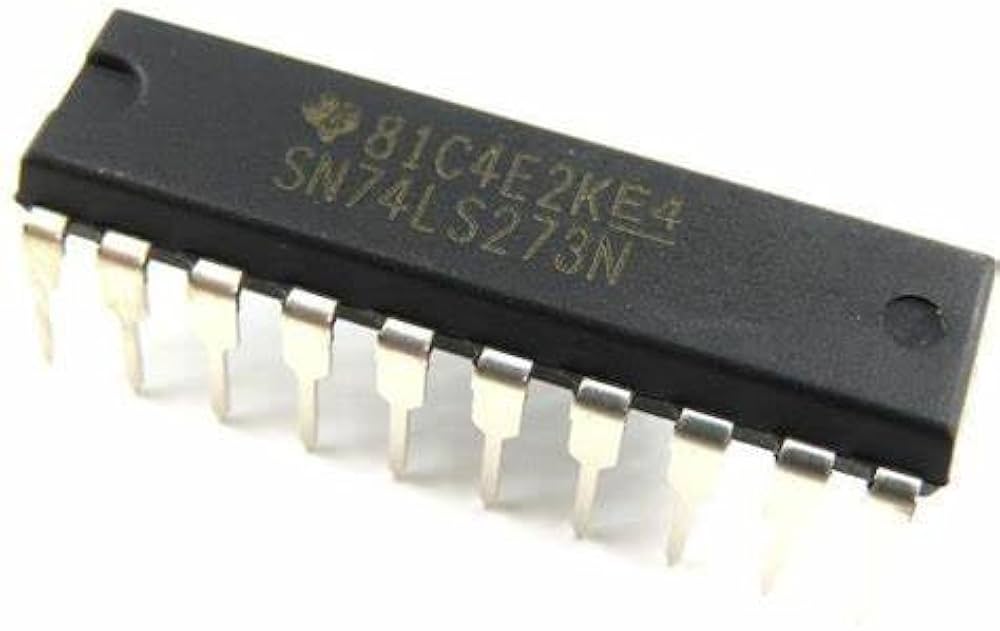

74LS273 IC Octal D-Type Flip-Flop with Clear and 3-State Outputs 74LS273-PDIP-20

Product Overview: A high-speed 8-bit register integrated circuit consisting of eight D-type flip-flops with a common clock and an asynchronous active-low master reset, designed for parallel data storage and transfer applications.

Core Specifications:

Manufacturer:onsemi

Part Number: 74LS273

Package Type: 20-pin (0.3-inch row spacing)

Function: 8-Bit Register (with Clear)

Input Channels: 8 Parallel Data Inputs (D0-D7), Clock, Master Reset

Control Interface: TTL-compatible logic
