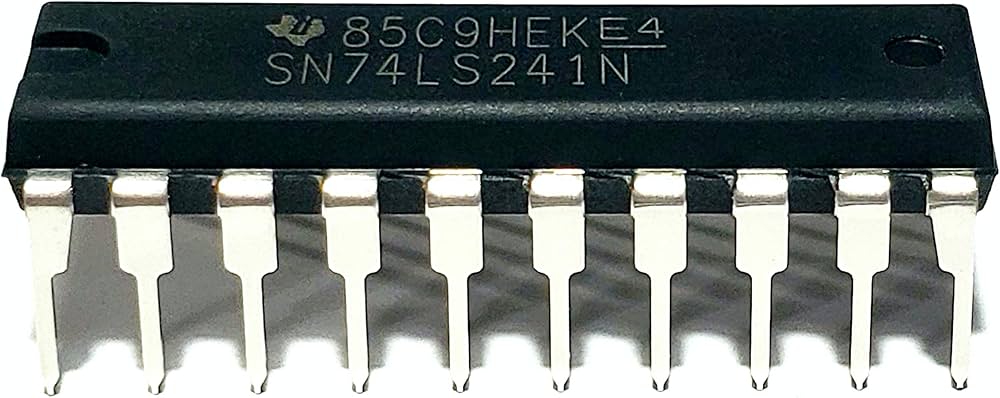

74LS241 IC Octal Buffers and Line Drivers DIP-20 74LS241

Product Overview

Fairchild Semiconductor manufactures the DM74LS241, an octal 3-state buffer and line driver designed to improve performance and PC board density in memory-address drivers, clock drivers, and bus-oriented transmitters or receivers. This low-power Schottky device features high fan-out outputs capable of driving terminated lines directly and incorporates 400 mV of input hysteresis to significantly improve noise rejection margins. It is optimized for high-speed data transmission, offering a typical noninverting propagation delay of 12 ns and low input loading via integrated PNP data inputs.

Core Specifications

• Manufacturer: Fairchild Semiconductor

• Function: Octal 3-STATE Buffer / Line Driver / Line Receiver
