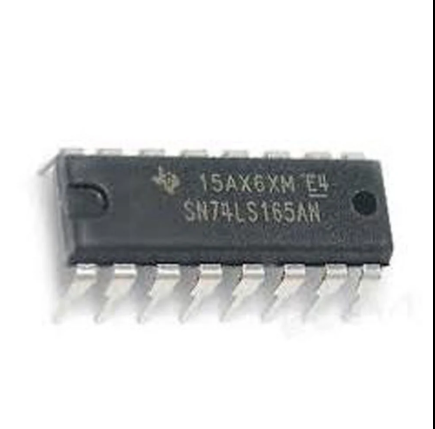

74LS165 IC SHIFT REGISTER DIP-16 74LS165

Product Overview: The 74LS165 is an 8-bit serial shift register designed to shift data from QA toward QH upon clocking. It provides parallel-in access through eight individual direct data inputs, which are enabled when the shift/load input is set to a low level. The device also features gated clock inputs, allowing one input to function as a clock-inhibit, and offers complementary outputs from the eighth bit (QH and Q-not-H). Parallel loading is independent of the clock state and occurs on a high-to-low transition of the shift/load input. Typical applications include parallel-to-serial data conversion and digital system synchronization.

Core Specifications:

• Manufacturer: Fairchild Semiconductor

• Package Type: 16-lead Plastic Dual-In-Line Package (PDIP), 16-pin SOIC

• Function: 8-bit parallel-in/serial-out shift register featuring complementary outputs, gated clock inputs, and a typical shift frequency of 35 MHz, with a power dissipation of approximately 105 mW.
