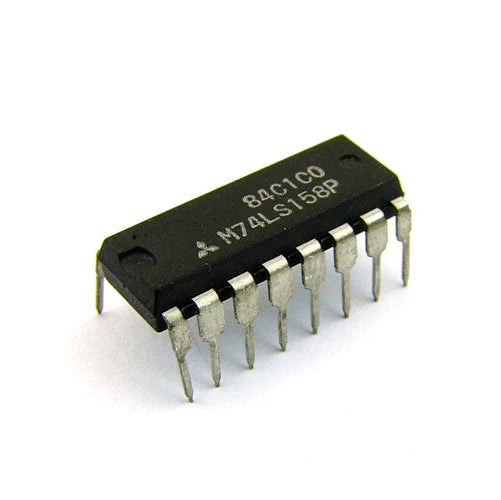

74LS158 IC Quad 2-to-1 Multiplexer DIP-16 74LS158

Product Overview

The SN74LS157 is a quadruple 2-line to 1-line data selector/multiplexer. It features buffered inputs and outputs, allowing it to select a 4-bit nibble from one of two distinct data sources under the control of a common data-select input. A separate strobe/enable input is provided to enable or disable all outputs simultaneously.

Core Specifications

• Manufacturer: Texas Instruments

• Function: Quadruple 2-Line to 1-Line Data Selector/Multiplexer
