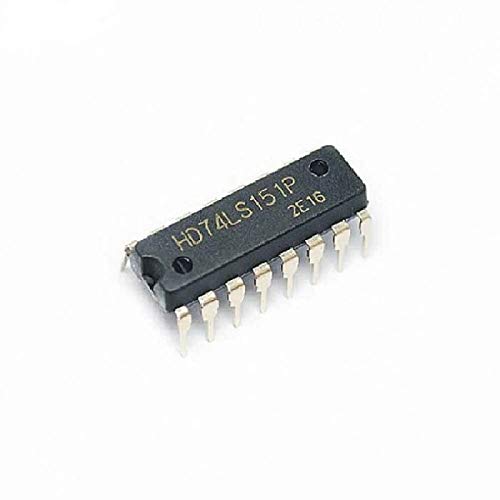

74LS151 IC 8-line to 1-line data selector/multiplexer DIP-16 74LS151

Product Overview

The SN74LS151N is an 8-line to 1-line data selector/multiplexer. It features full on-chip decoding to select a single data source from eight distinct inputs (D0 through D7) based on a 3-bit binary select address (A, B, C). It includes an active-LOW strobe input that serves as an enable line; when the strobe is driven HIGH, the device is disabled, forcing the primary output (Y) LOW and the complementary output (W) HIGH, regardless of the data or select inputs.

Core Specifications

• Manufacturer: HLF (HongLiFa Electronics)

• Function: 8-Input Data Selector / Multiplexer
