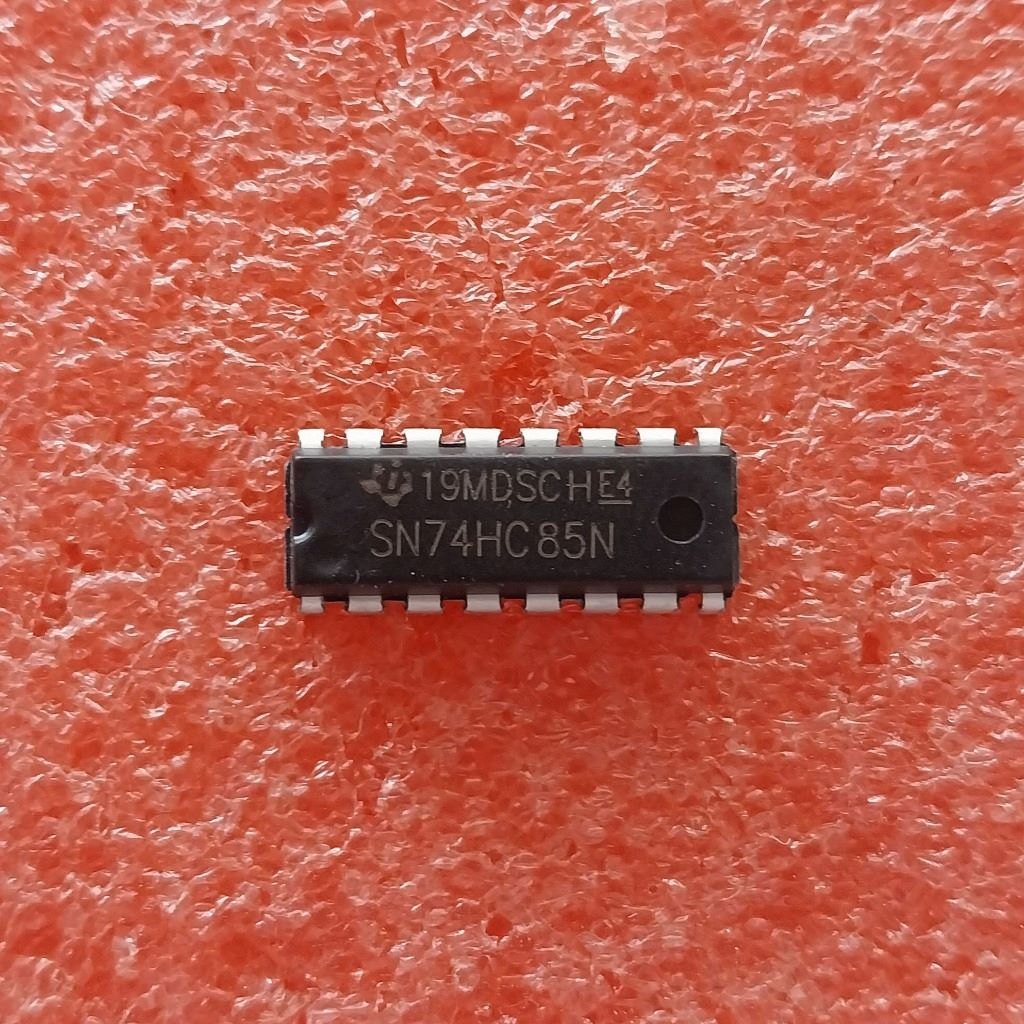

74HC85 IC 4 Bit Magnitude Comparator DIP-16 74HC85

Product Overview

The CD74HC85 is a high-speed CMOS logic 4-bit magnitude comparator designed by Texas Instruments. It utilizes silicon-gate CMOS technology to achieve fast operating speeds comparable to LSTTL while maintaining the ultra-low power consumption typical of standard CMOS circuits. The device compares two 4-bit binary, BCD, or other monotonic words and delivers the results through three dedicated magnitude outputs. Additionally, it features buffered inputs and outputs and supports direct serial or parallel expansion for larger word lengths without requiring external gating.

Core Specifications

• Manufacturer: Texas Instruments

• Function: High-Speed CMOS Logic 4-Bit Magnitude Comparator
