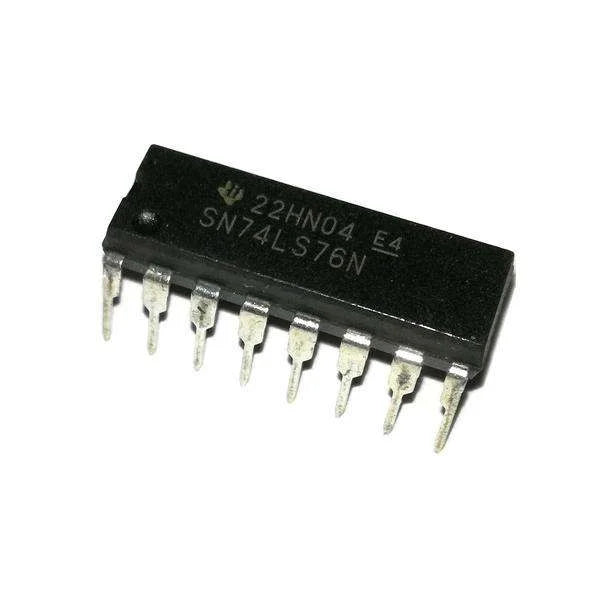

74LS76 IC Dual J-K Flip-Flop IC 74LS76

Product Overview The SN74LS76A is a Low Power Schottky (LS) Dual JK Flip-Flop equipped with individual J, K, Clock Pulse, Direct Set (SD), and Direct Clear (CD) inputs. It is designed such that when the clock input transitions to a HIGH state, the J and K control inputs are enabled and data is accepted. The stored bit values are then transferred to the outputs on the HIGH-to-LOW (negative-going) transition of the clock pulse.
