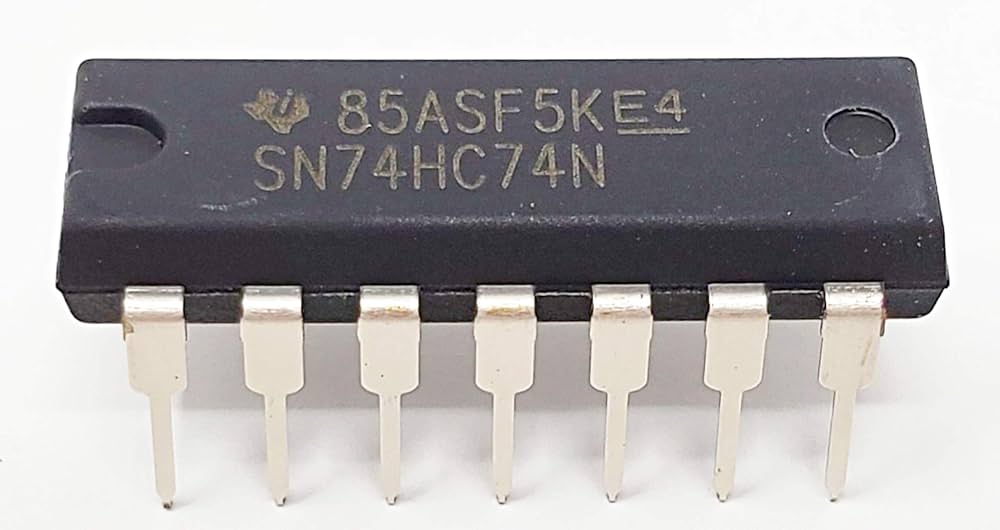

74HC74 IC DUAL D TYPE FLIP FLOP DIP-14 74HC74

Product Overview

The 74HC74, manufactured by ON Semiconductor, is a high-performance silicon-gate CMOS dual D-type flip-flop with Set and Reset capabilities. Each flip-flop has independent data (D), clock (CLK), set (/S), and reset (/R) inputs, with complementary Q and /Q outputs. The device is designed to be pin-compatible with the LS74 and features inputs that are compatible with standard CMOS outputs; it can also interface with LSTTL outputs when used with pull-up resistors.

Core Specifications

• Manufacturer: ON Semiconductor

• Function: Dual D Flip-Flop with Set and Reset
