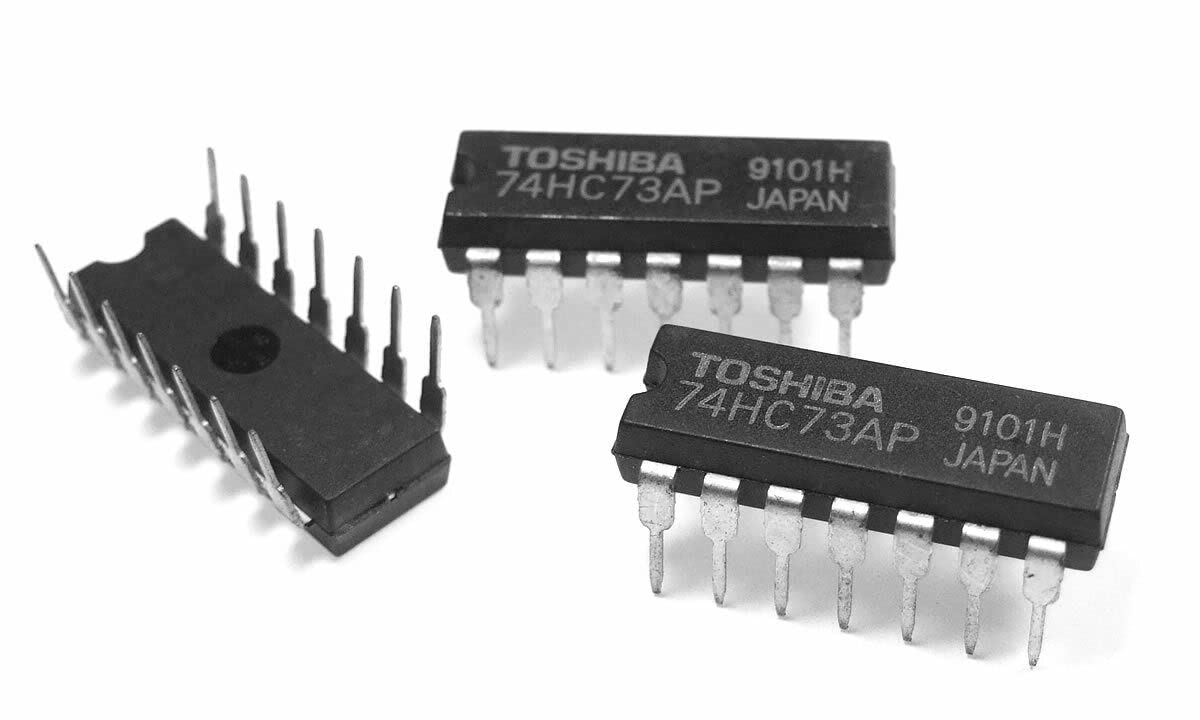

74HC73 IC Dual JK Flip-Flop with Clear DIP-14 74HC73

Product Overview

The 74HC73 is a dual J-K flip-flop device containing two independent flip-flops with individual J, K, clock, and asynchronous reset inputs. It is designed to trigger on the negative edge of the clock signal, meaning state changes occur on the high-to-low transition. The asynchronous reset input, when pulled HIGH, overrides all other inputs to force the Q output LOW.

Core Specifications

• Manufacturer: Texas Instruments

• Package Type: Available in various packages including PDIP, SOIC, and TSSOP.

• Function: Dual (2-bit) negative-edge-triggered J-K flip-flops with asynchronous reset.
