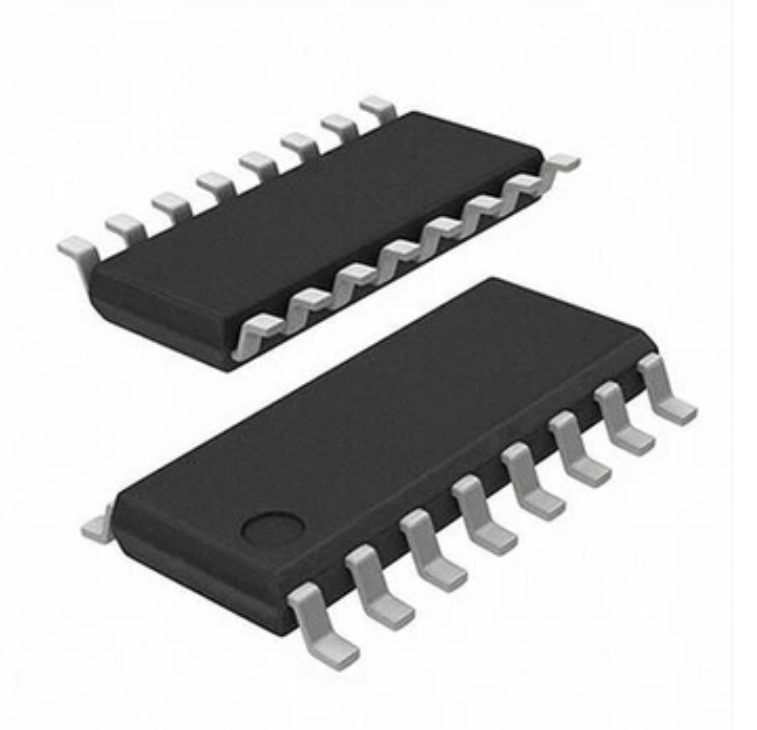

74HC595DRG SMD IC HANSCHIP Shift Register 74595 SOP-16 74HC595DRG

Product Overview:

The 74HC595DRG is a high-speed CMOS 8-bit serial-in, parallel-out shift register manufactured by Hanschip Semiconductor. It features an integrated storage register and 3-state outputs, primarily serving as a port expander to increase the number of available output pins on microcontrollers.

Core Specifications:

• Manufacturer: Hanschip Semiconductor

• Package Type: SOP-16

• Function: 8-bit Serial-to-Parallel shift register with output latch

• Operating Voltage: 3.2V to 5.5V

• Output Type: 3-state outputs

Features:

• Serial Expansion: Allows control of numerous outputs via a minimal pin count.

• Storage Latch: Facilitates data shifting without affecting current output states until a latch pulse is applied.

• Cascading Capability: Features a serial output pin that enables daisy-chaining multiple chips for increased output capacity.

• Noise Immunity: Designed with input and output buffers to ensure reliable logic performance.

• Protection: Includes internal circuitry for protection against static electricity and voltage surges.

Applications:

• LED Control: Driving large LED arrays, 7-segment displays, or LED matrices.

• Peripheral Expansion: Increasing I/O capacity for microcontrollers in embedded systems.

• Industrial Control: Signal timing, data buffering, and complex state machine management.

• Consumer Electronics: Interface panels, control modules for smart appliances, and home automation systems.
