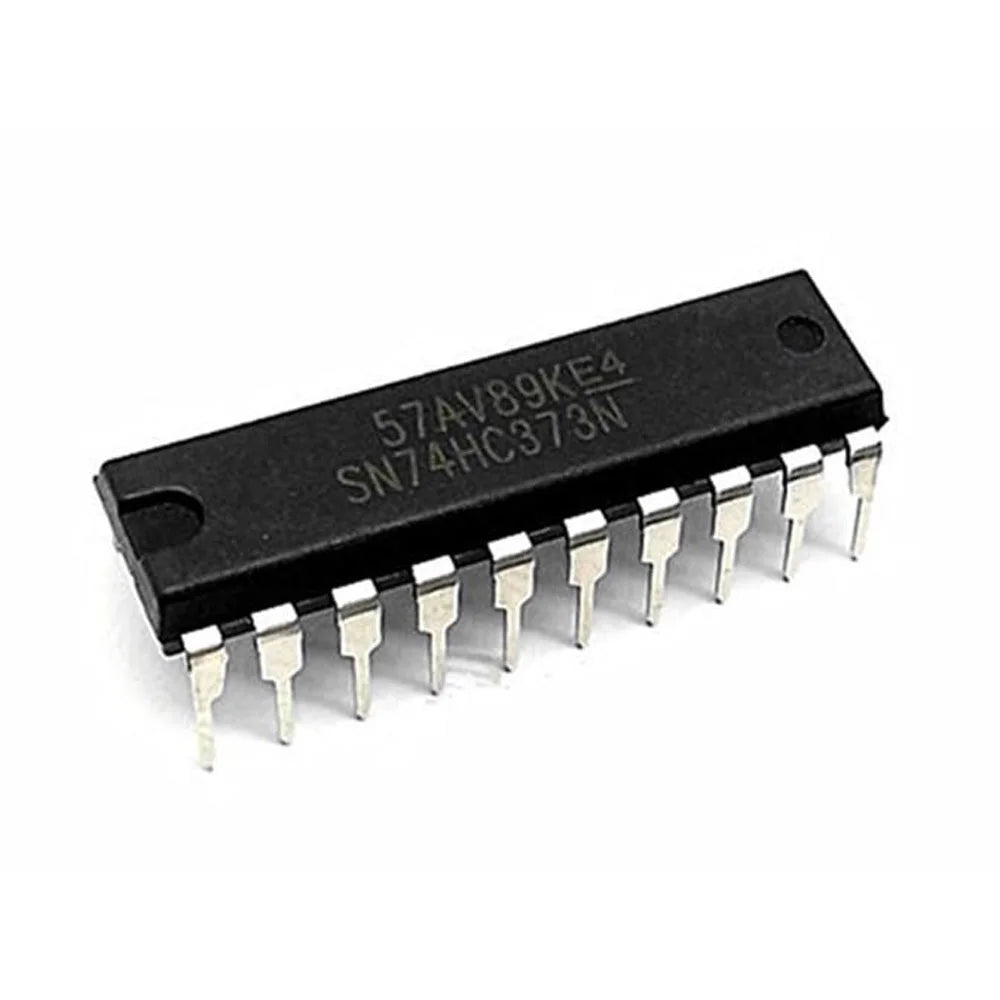

74HC373 IC Octal D-Type Transparent Latch DIP-20 74HC373

Product Overview

The 74HC373 is an octal transparent D-type latch featuring 3-state outputs. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When the LE input is low, the data present at the inputs at the time of the transition is latched and held at the Q outputs. The output-enable (OE) input allows the outputs to be placed in a high-impedance state, which is useful for bus-oriented systems.

Core Specifications

• Manufacturer: Texas Instruments

• Package Type: Available in 20-pin Plastic Small Outline (SOIC), Plastic Dual-In-Line (PDIP), and Ceramic (CDIP) packages

• Function: Octal transparent D-type latch with 3-state outputs
