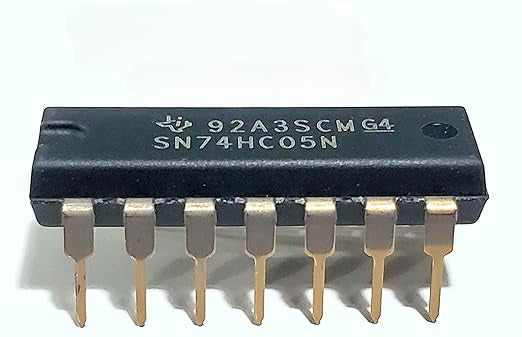

74HC05 IC Hex Inverter with Open-Drain Outputs DIP-14 74HC05

Product Overview

The 74HC05 contains six inverters. The outputs of the 74HC05 are open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. The open-drain outputs require pull-up resistors to perform correctly.

Core Specifications

• Manufacturer: Nexperia

• Function: Hex Inverter with Open-Drain Outputs
