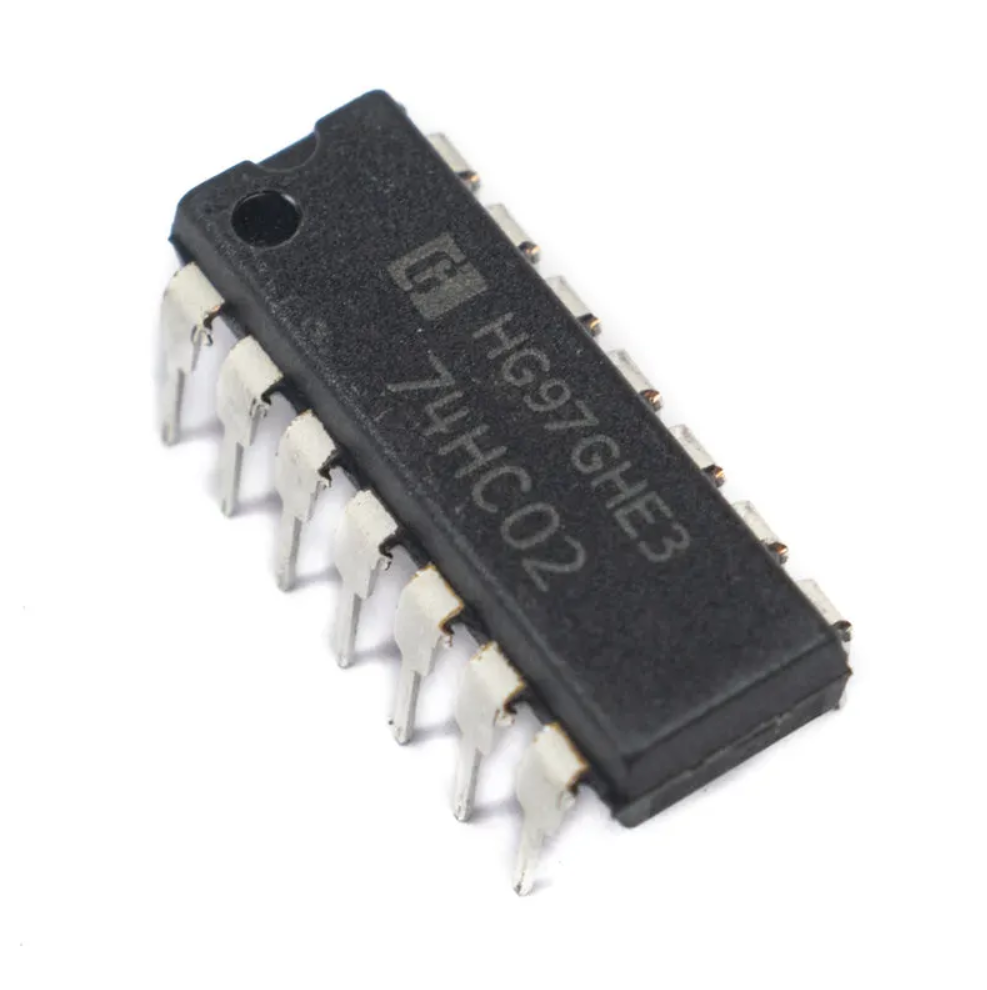

74HC02 SMD IC 7402 H02 SOIC14 74HC02-SOIC-14

Product Overview:

A surface-mount, quad 2-input NOR gate integrated circuit designed for reliable, low-power digital logic operations. Each device contains four independent gates with protective input clamp diodes, enabling the safe use of current-limiting resistors to interface with logic signals that exceed the chip's operating supply voltage.

Core Specifications:

Manufacturer: Nexperia

Package Type: Available in SO14 (D), TSSOP14 (PW), DHVQFN14 (BQ), and DHXQFN14 (BZ) packages

Function: Quad 2-Input NOR Gate

Input Channels: 4 Independent Gates (each featuring 2 Data Inputs: A and B)

Control Interface: Direct Logic Input

Features:

• Wide operational supply voltage range: 2.0 V to 6.0 V

• Energy-efficient operation with ultra-low CMOS power dissipation

• Exceptional high noise immunity characteristic

• Excellent latch-up performance exceeding 100 mA per JESD 78 Class II Level B

• Selectable input logic level configurations: CMOS standard levels (74HC02) or TTL compatible levels (74HCT02)

• Fully compliant with JEDEC industry standards JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V)

• Advanced ESD protection: Human Body Model (HBM) exceeds 2000 V, and Charged Device Model (CDM) exceeds 1000 V

• Highly reliable over an extended operating temperature range specified from -40°C to +125°C

Applications:

• General-purpose Boolean logic function execution

• High-speed digital signal gating, buffering, and routing

• Industrial control subsystems requiring robust noise rejection

• Mixed-voltage systems interfacing utilizing input current-limiting resistors
