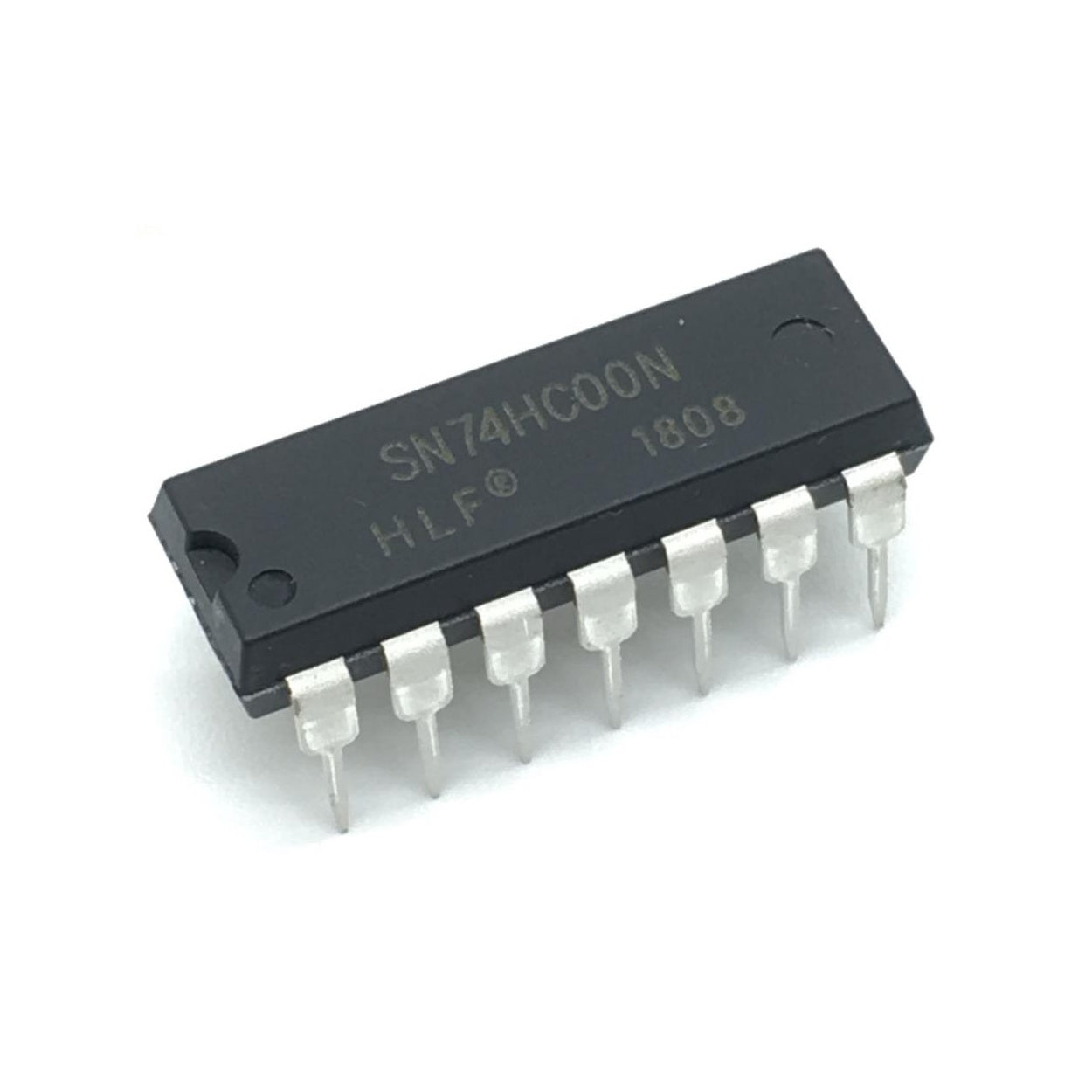

74HC00 IC DIP14 NAND GATE 7400

Product Overview

The 7400 is a standard TTL monolithic integrated circuit containing four independent 2-input NAND gates. It utilizes standard transistor-transistor logic to provide high-speed gating functions, making it a foundational building block in digital systems for logic implementation, signal inversion, and gating. It is designed to interface directly with CMOS, NMOS, and TTL logic families, though it is not recommended for new designs, where the lower-power 74LS00 variant is preferred.

Core Specifications

• Manufacturer: Standard Industry Generic (Multiple Manufacturers)

• Package Type: Standard 14-pin Dual In-Line Package (DIP-14)

• Function: Quad 2-Input NAND Gate Logic IC

• Input Voltage: Operating supply voltage range of 4.75V to 5.25V (5V Nominal)

• Control Interface: Four independent pairs of logic inputs (A and B) driving corresponding outputs (Y) based on a NAND logic truth table.
