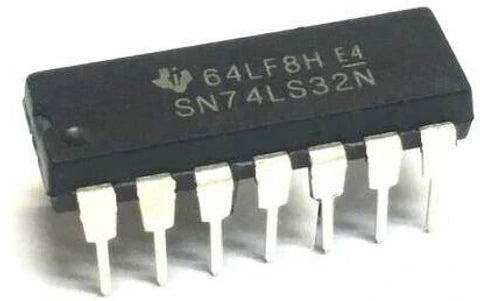

74HC32 IC DIP14 gate 74HC32

Product Overview

The 74HC/HCT32 is a high-speed, quad 2-input OR gate. It is fabricated with Si-gate CMOS technology and is pin-compatible with low-power Schottky TTL (LSTTL) devices. The device is designed to provide the 2-input OR logic function.

Core Specifications

• Manufacturer: TEXAS INSTRUMENTS

  Package Type: 14-lead DIL (plastic, SOT27) or 14-lead mini-pack (plastic, SO14, SOT108A)

  Function: Quad 2-input OR gate
