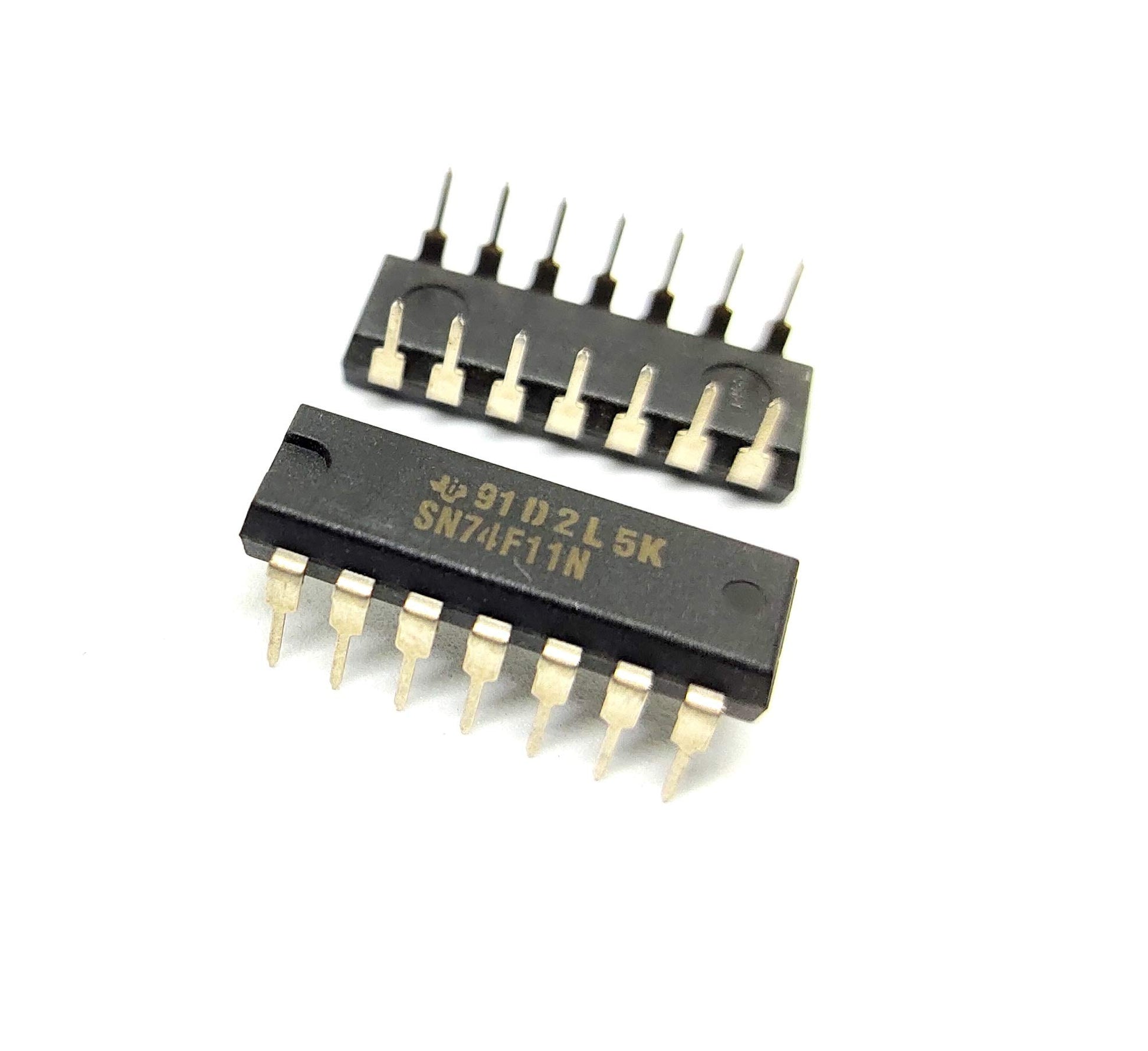

7411 IC AND Gate 7411

Product Overview

A standard transistor-transistor logic integrated circuit featuring three independent three-input AND gates on a single chip. Designed for fundamental digital logic processing, this device changes its output to a high state only when all three corresponding inputs are driven high. The outputs are fully compatible and engineered to interface directly with CMOS, NMOS, and TTL electronic components. Operating within a recommended supply voltage range of 4.75V to 5.25V and a standard commercial temperature range of 0 to 70 degrees Celsius, it offers a reliable gate-level logic consolidation solution for legacy computing, signal gating, and timing circuits, though it is designated as not recommended for new system designs.

Core Specifications

• Manufacturer: Standard Logic Manufacturer (Texas Instruments or generic TTL equivalent)

• Package Type: DIP-14 (14-pin Dual Inline Package)

• Function: Triple Three-Input AND Gate Digital Logic Integrated Circuit (7411 Series)

• Input Voltage: Recommended operational supply voltage range from 4.75V to 5.25V, with an absolute maximum rating of 7V

• Control Interface: Hardware-defined logic gating interface comprising three separate groups of three-input pins routing to three independent decoded outputs, maintaining a maximum propagation delay time between 15 and 22 nanoseconds.
