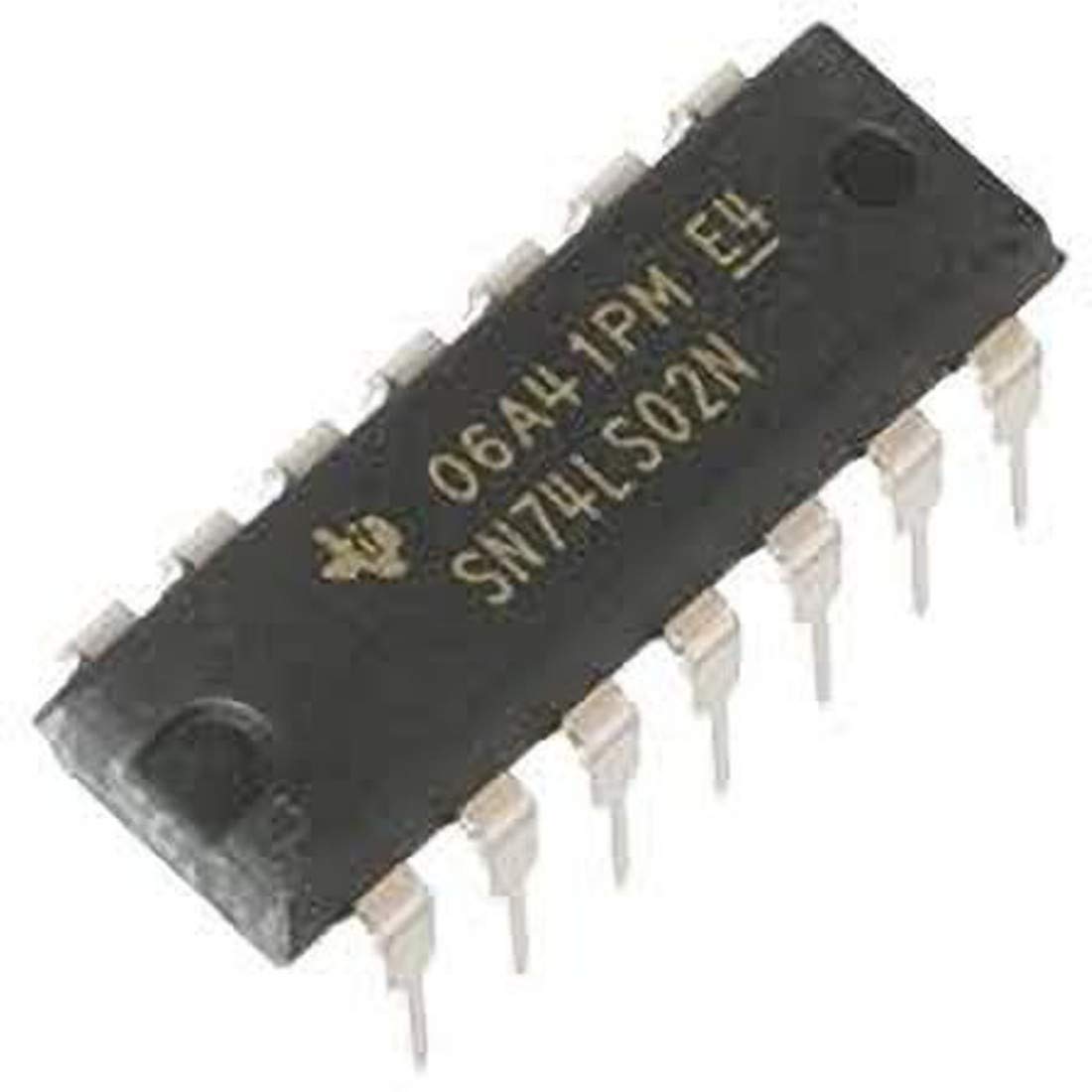

74LS02 IC NOR GATE DIP-14 74LS02

Product Overview: The SN74LS02 contains four independent 2-input NOR gates. It utilizes Low-Power Schottky (LS) TTL technology to implement the NOR logic function, driving output lines low if any of the inputs are high. Typical applications cover digital logic circuits, signal gating, and waveform generators requiring dependable logic processing.

Core Specifications:

• Manufacturer: Texas Instruments Incorporated

• Package Type: Plastic "Small Outline" (SOIC) packages, ceramic chip carriers, flat packages, and plastic and ceramic dual-in-line (DIP) packages

• Function: Quad 2-input NOR gate designed for digital logic operations across standard temperature ranges
