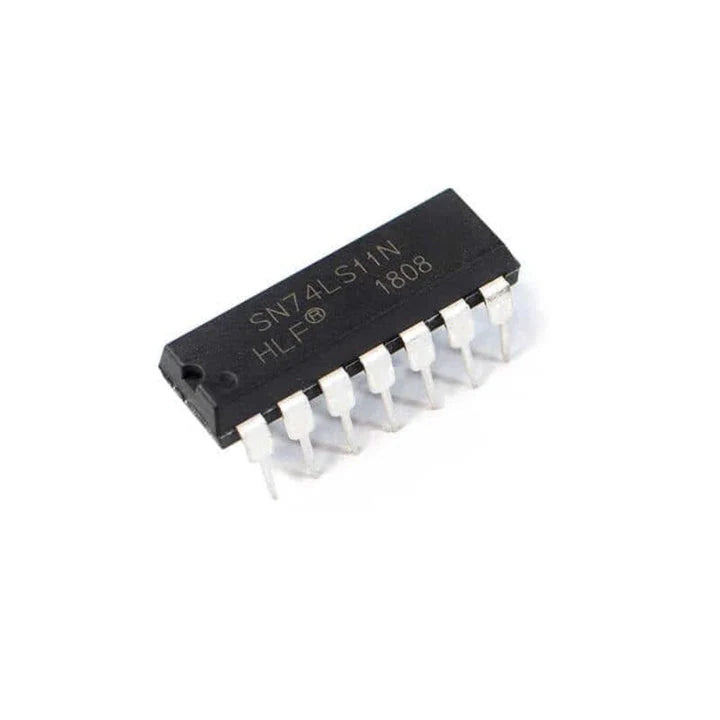

74 LS11 IC Triple 3-Input AND Gate DIP-14 74LS11

Product Overview

The 74LS11 is a digital logic device containing three independent 3-input AND gates. Each gate performs the logical AND function (Y = A · B · C), meaning the output is HIGH only when all three inputs are HIGH. It is a standard Low-Power Schottky (LS) TTL device commonly used in digital control, address decoding, and general-purpose logic gating.

Core Specifications

Manufacturer: Fairchild Semiconductor (also produced by others like Texas Instruments and Motorola) Package Type: Available in 14-lead Plastic DIP (N14A) and Small-Outline (SOIC/M14A) packages. Function: Triple 3-input AND gate.
