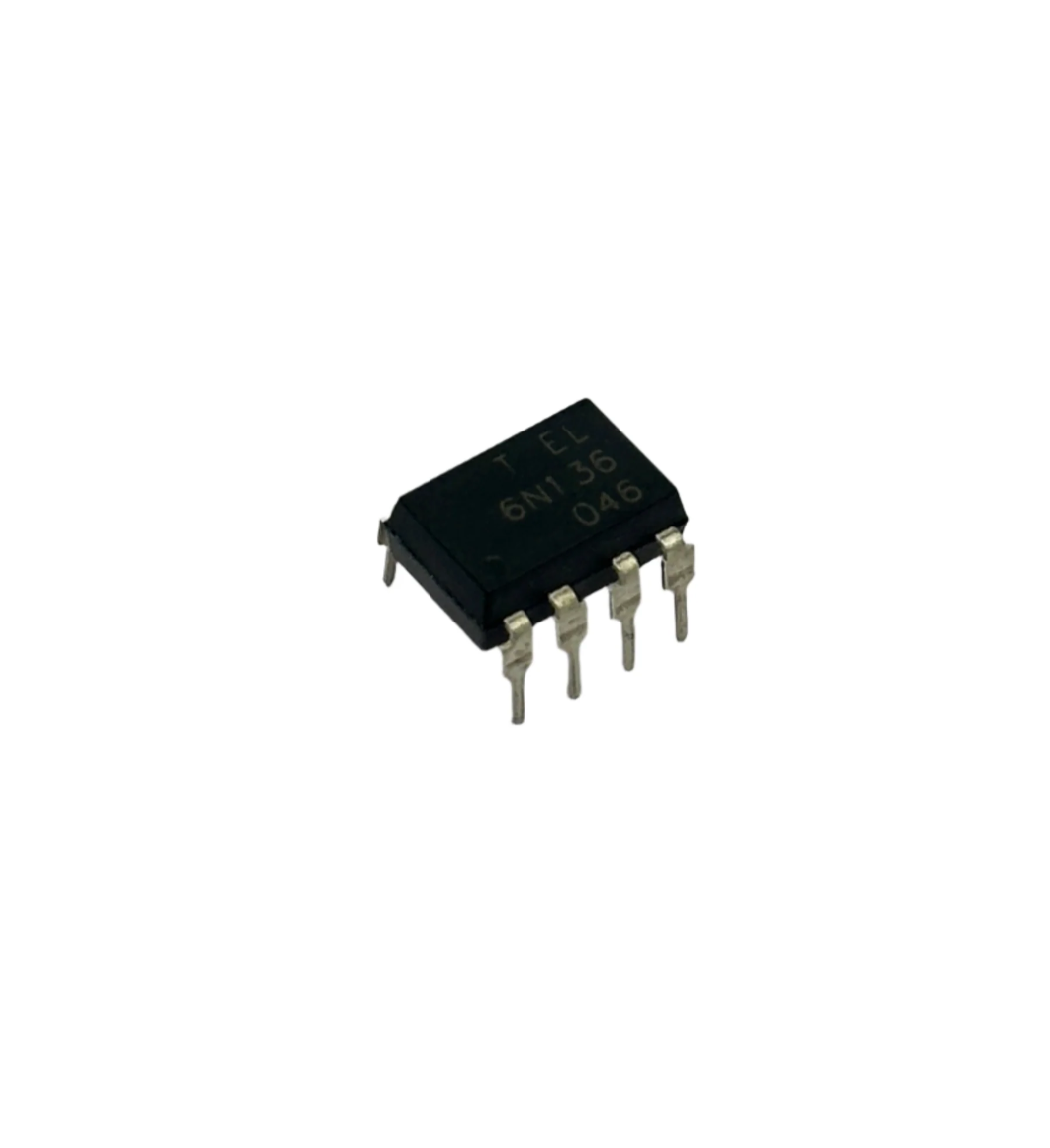

6N136 IC Optocoupler EVERLIGHT 6N136

Product Overview:

An 8-pin DIP high-speed 1Mbit/s transistor photocoupler integrated circuit consisting of an infrared emitting diode optically coupled to a high-speed photo detector transistor. It features a separate connection for the photodiode bias and output-transistor collector to significantly increase speed by reducing base-collector capacitance.

Core Specifications:

Manufacturer: Everlight Electronics

Package Type: 8-pin DIP (Wide lead spacing and SMD options available)

Function: High-Speed Transistor Photocoupler

Data Rate: 1 Mbit/s

Isolation Voltage: 5000 Vrms

Features:

• High isolation voltage between input and output

• Guaranteed performance from 0°C to 70°C with a wide operating temperature range of -55°C to 100°C

• Pb-free and RoHS compliant

• Multiple safety approvals including UL, cUL, VDE, SEMKO, NEMKO, DEMKO, and FIMKO

Applications:

• Line receivers and telecommunication equipment

• Power transistor isolation in motor drives

• Feedback loops in switch-mode power supplies

• High-speed logic ground isolation and home appliances
