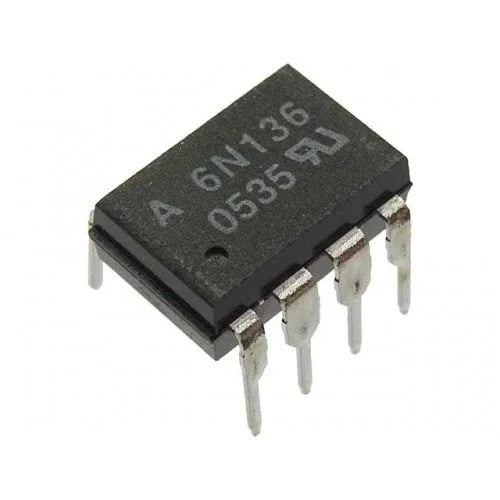

6N136M IC Opto coupler DIP-8 6N136M

Product Overview: The 6N136M consists of an AlGaAs LED optically coupled to a high-speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor. Typical applications cover line receivers, pulse isolation, feedback loop in power supplies, and ground isolation between logic familie

Core Specifications:

• Manufacturer: onsemi

• Package Type: 8-pin dual-in-line (DIP) package, available in standard through-hole and gull-wing (GW) surface mount options

• Function: 8-pin single-channel high-speed transistor optocoupler providing high isolation voltage between input and output
