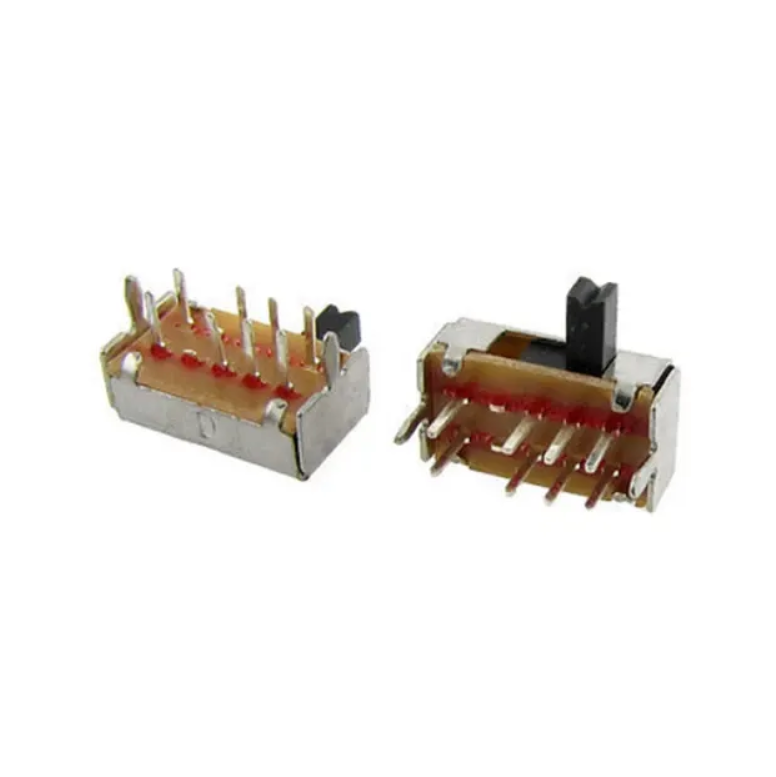

6 Pin Slide Switch G-Switch 1A 24V SK-14D01-G030

Product Specifications

• Product Name: 6-Pin Slide Switch G-Switch SK-14D01-G030

• Part Number: SK-14D01-G030

• Brand: G-Switch

• Type: Slide Switch

• Pin Configuration: 6-Pin

• Rating: 1A @ 24V DC

• Contact Resistance: ≤50mΩ

• Insulation Resistance: ≥100MΩ @ 250V DC

• Dielectric Strength: 250V AC / 1 Minute

• Operating Temperature: -20°C to +70°C

• Mechanical Life: 10,000 Cycles

• Mounting: PCB Mount
