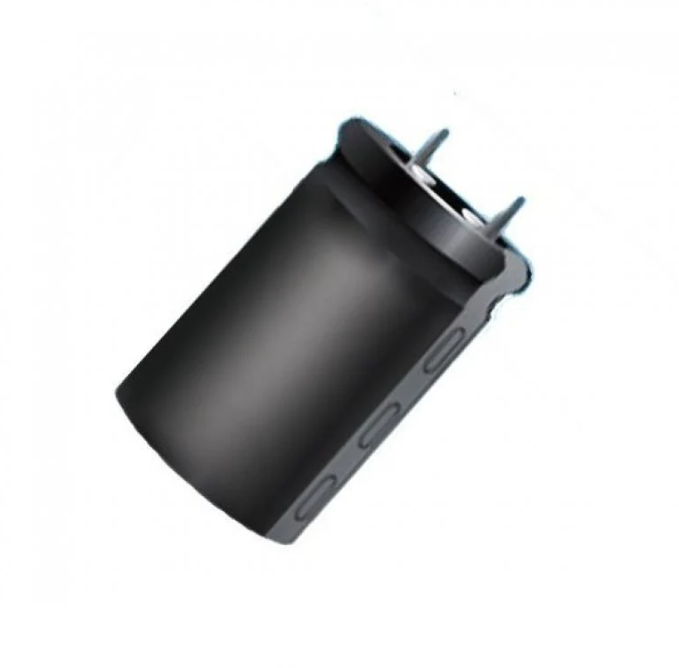

560uF 450V Electrolytic Capacitor Samwha CAN 560uF 450V

Product Overview

The Samwha 560µF 450V electrolytic capacitor is a high-capacity, high-voltage "can" type component, typically featuring a snap-in terminal configuration. Part of Samwha’s large-can industrial lines (such as the HC, HJ, or HK series), this heavy-duty capacitor is engineered for bulk energy storage, DC-link filtering, and heavy ripple current smoothing in high-power systems.

Because rectified 220V/240V AC mains power passed through a Power Factor Correction (PFC) circuit produces a massive DC bus voltage (often climbing to 380V–400V DC), a 450V rating is required to provide an adequate safety headroom. This capacitor is a foundational block in heavy industrial equipment, large switch-mode power supplies (SMPS), frequency inverters, welding power sources, and solar inverters.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 560µF (Microfarads)

• Voltage Rating: 450V DC (High-Voltage Industrial Grade)

• Tolerance: ±20%

• Temperature Rating: Typically 85°C (Standard HC series) or 105°C (High-Temperature HJ/HK series)

• Mounting Style: Can Type / Snap-In Terminals

• Physical Dimensions: High-variance depending on series; typically ranges from 30mm to 35mm Diameter x 40mm to 60mm Height

• Terminal Pitch (Spacing): Standard 10mm (Snap-in layout)
