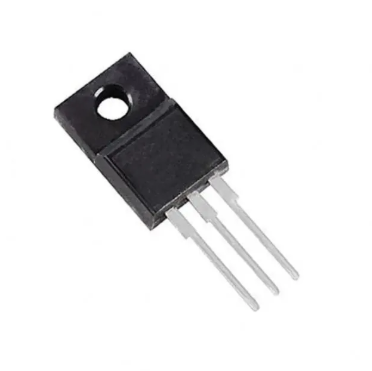

4N80L MOSFET TO220F1 UTC 4A 800V UTC 4N80L

Product Overview:

The 4N80L is a high-voltage, through-hole N-Channel Power MOSFET manufactured by Unisonic Technologies (UTC). Engineered with advanced planar stripe and DMOS technology, this component minimizes on-state resistance while delivering superior, high-speed switching capabilities. The TO-220F1 package option features a fully over-molded plastic insulation, making it ideal for compact layouts where electrical isolation from the heatsink is required without separate hardware. It is extensively applied in high-efficiency switch-mode power supplies (SMPS), PWM controllers, motor drivers, and DC-DC converters.

• Manufacturer: Unisonic Technologies Co., Ltd (UTC)

• Package Type: TO-220F1 (Fully isolated plastic package)

• Function: N-Channel Power MOSFET

• Voltage Rating (Vds): 800V

• Current Rating (Id): 4.0A (Continuous) / 8.0A (Pulsed)

• Drain-Source On-Resistance (Rds(on)): 3.0 Ohms (Typical) / 3.7 Ohms (Maximum) at $V_{GS}=10V$

• Maximum Power Dissipation (Pd): 28W to 36W (dependent on sub-variant thermal configuration)

• Gate-Source Voltage (Vgs): ±30V

• Part Number: 4N80L
