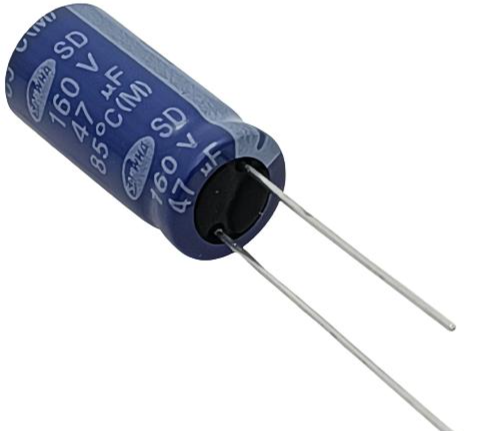

47uF 160V Electrolytic Capacitor SAMWHA 85C 47uF 160V

Product Overview

The Samwha 47µF 160V electrolytic capacitor is a polarized, radial-lead aluminum electronic component designed for medium-to-high voltage applications. Belonging to Samwha's reliable standard series (such as the SD series), it excels at DC voltage smoothing, ripple current suppression, and filtering on moderate-voltage power lines. It is heavily utilized in circuits like SMPS (Switched-Mode Power Supplies) output stages, electronic ballasts, small motor controllers, and audio frequency coupling.

Core Specifications

• Manufacturer: Samwha

• Capacitance: 47µF

• Voltage Rating: 160V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Mounting Style: Radial Leaded (Through-hole)

• Typical Physical Dimensions: Approximately 10mm Diameter x 21mm Height with a 5mm Lead Pitch
