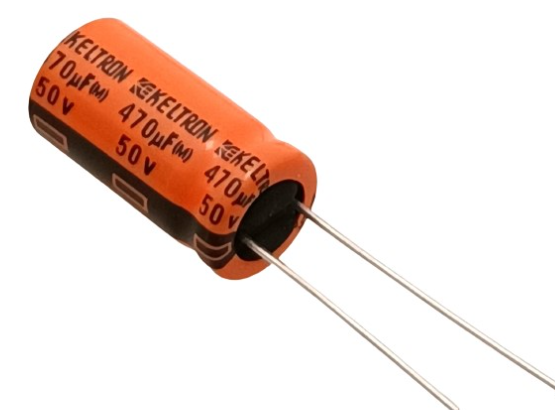

470uF 50V Electrolytic Capacitor KELTRON 470uF 50V

Product Overview

The Keltron 470µF 50V electrolytic capacitor is a polarized aluminum through-hole component designed for medium-voltage circuit tracks. Typically belonging to Keltron's standard SA Series, this capacitor is engineered for DC voltage smoothing, ripple current suppression, and power supply decoupling.

With its versatile 50V rating, it is widely used in audio amplifiers, power adapters, motor control circuits, and secondary filtering stages of power supplies.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 470µF (Microfarads)

• Voltage Rating: 50V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Series: SA Series (Standard Part Code: SA4711HMCDB0)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 10mm Diameter x 16mm to 20mm Height

• Lead Pitch (Spacing): 5mm
