470uF 40V Electrolytic Capacitor 85C KELTRON 470uF 40V

Product Overview

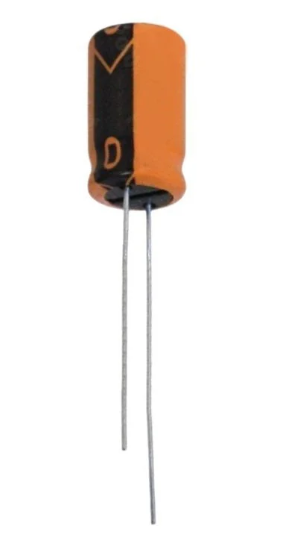

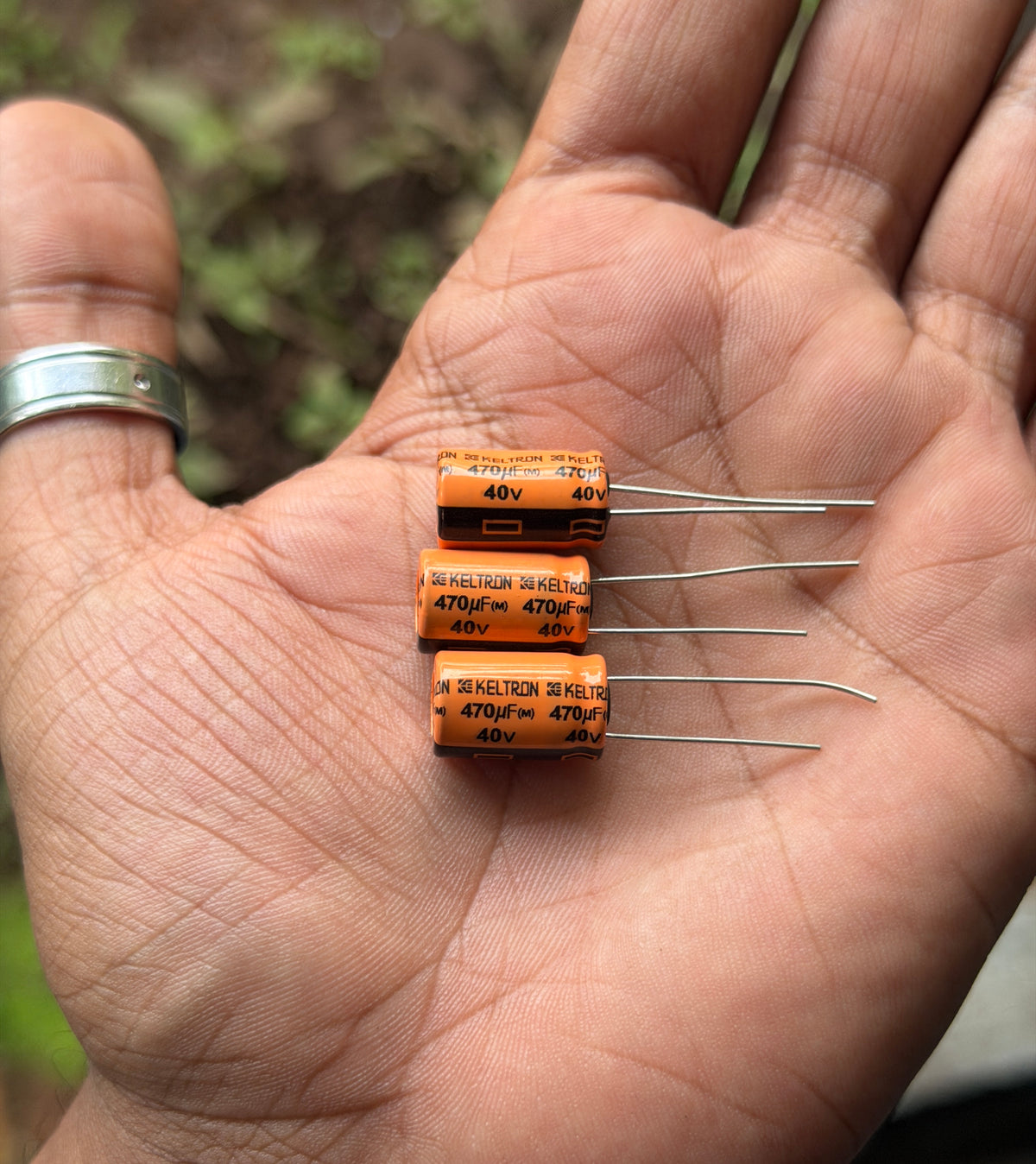

The 470uF 40V KELTRON Electrolytic Capacitor 85C ET7909 is a polarized, radial-lead aluminum electronic component designed for medium-voltage circuit paths. Manufactured by Keltron, it typically belongs to the reliable SA Series (Standard General Purpose) and specializes in DC voltage smoothing, ripple suppression, and transient signal filtering.

Its 85°C thermal threshold makes it ideal for consumer electronics, motor driver systems, audio processing circuits, and secondary filter stages in power supplies.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 470µF

• Voltage Rating: 40V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Series: SA Series (Standard Part Code: SA4711GMCDB0)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 10mm Diameter x 16mm Height

• Lead Pitch (Spacing): 5mm

• Lead Diameter: 0.6mm
