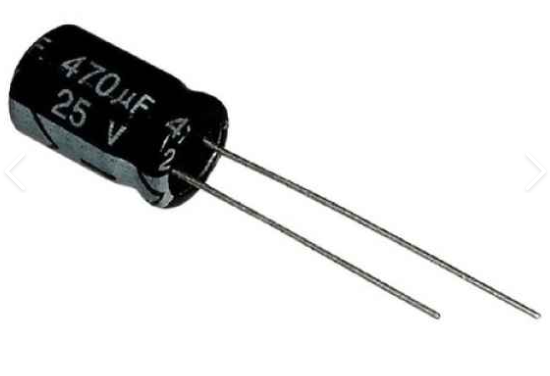

470uF 25V Electrolytic Capacitor KELTRON 85C 20% 10x12.5mm 470uF 25V

Product Overview

The Keltron 470µF 25V electrolytic capacitor is a medium-capacity, polarized aluminum through-hole component. Typically part of Keltron’s standard SA series, this radial capacitor is designed for DC voltage smoothing, low-frequency ripple filtering, and intermediate bulk energy storage.

With its compact 10x12.5mm form factor and reliable 25V threshold, it is a versatile choice for secondary power stages in audio equipment, consumer electronics, computer power rails, and small DC-to-DC voltage regulators.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 470µF (Microfarads)

• Voltage Rating: 25V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Series: SA Series

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 10mm Diameter x 12.5mm Height

• Lead Pitch (Spacing): 5mm
