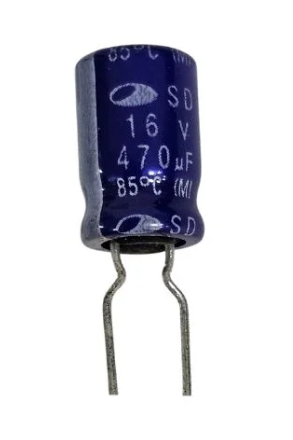

470uF 16V Electrolytic Capacitor Samwha 85C 470uF 16V

Product Overview

The Samwha 470µF 16V electrolytic capacitor is a medium-capacity, polarized aluminum through-hole component. Typically part of Samwha’s general-purpose SD series, this capacitor is engineered for DC voltage decoupling, signal bypassing, and ripple current filtering.

With its compact 470µF capacity and 16V rating, it is a versatile choice for low-voltage secondary power stages, such as those found in consumer audio equipment, computer motherboard power rails, and small DC-to-DC power supply circuits.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 470µF (Microfarads)

• Voltage Rating: 16V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SD variant)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 8mm Diameter x 11mm to 12mm Height

• Lead Pitch (Spacing): 3.5mm
