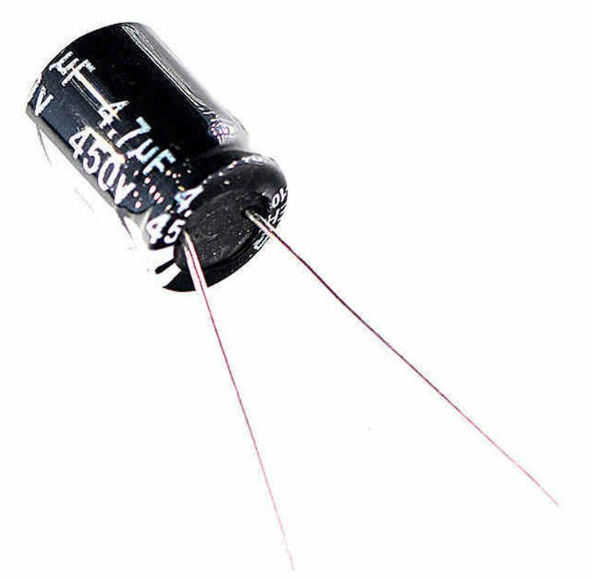

4.7uF 450V Electrolytic Capacitor 105c Jwco 8x12mm 4.7uF 450V

Product Overview

The JWCO 4.7µF 450V electrolytic capacitor is a high-voltage, compact polarized radial through-hole component. With an upgraded 105°C thermal rating, this capacitor is engineered for use in high-stress environments such as the primary input filtering stage of Switched-Mode Power Supplies (SMPS), LED drivers, and auxiliary power circuits.

Its sub-miniature 8x12mm form factor allows for high-density integration in space-constrained electronic designs, such as laptop power bricks or mobile chargers, while its 450V rating provides the necessary overhead for rectified AC mains applications.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronics)

• Capacitance: 4.7µF (Microfarads)

• Voltage Rating: 450V DC

• Tolerance: ±20%

• Temperature Rating: Up to 105°C (High-Temperature Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 8mm Diameter x 12mm Height

•
