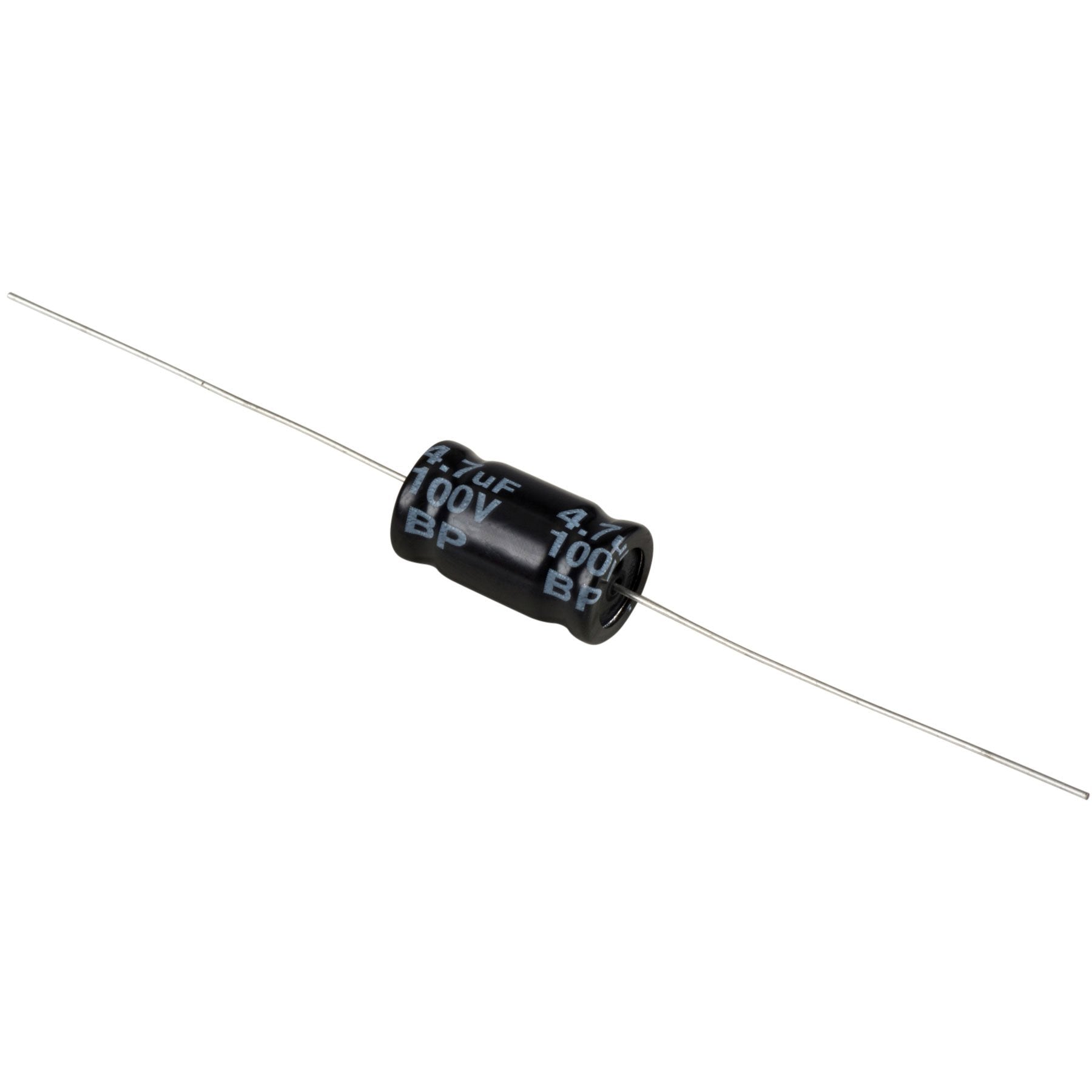

4.7uF 100V Electrolytic Capacitor 105C 5x11mm 4.7uF 100V

Product Overview

The 4.7µF 100V electrolytic capacitor is a sub-miniature, polarized aluminum through-hole component. Featuring an upgraded 105°C thermal rating, this capacitor is engineered for high-reliability applications requiring analog signal coupling, DC decoupling, and high-frequency noise suppression within tightly constrained spaces.

With its small 5x11mm footprint and a robust 100V rating, it provides an exceptional voltage safety margin. It is commonly utilized in telecommunications equipment (like 48V rails), industrial sensor interfaces, power supply feedback loops, and audio amplifier biasing circuits where unexpected voltage transients or inductive spikes may occur.

Core Specifications

• Capacitance: 4.7µF (Microfarads)

• Voltage Rating: 100V DC

• Tolerance: ±20% (Standard)

• Temperature Rating: Up to 105°C (High-Temperature Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 5mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2mm to 2.5mm
