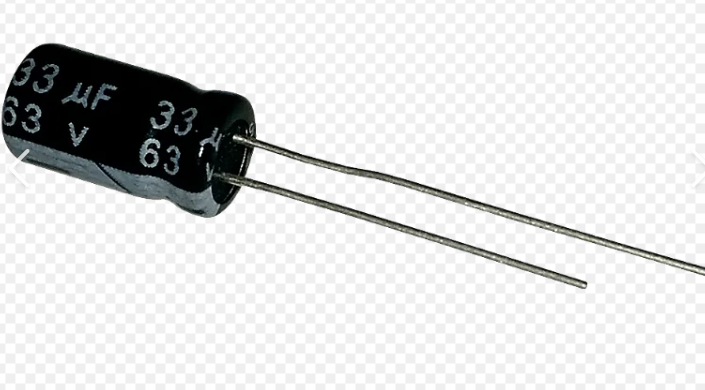

33uF 63V Electrolytic Capacitor SAMWHA 33uF 63V

Product Overview

The 33uF 63V SAMWHA Electrolytic Capacitor ETA2236 is a polarized aluminum through-hole component belonging to Samwha's general-purpose standard reliable SD series. It is engineered for low- to medium-voltage analog and digital systems to deliver reliable DC voltage smoothing, signal coupling/decoupling, and high-frequency ripple filtering. Its long lifespan of up to 12,000 hours ensures consistent, long-term performance across space-constrained and DIY electronics setups.

Core Specifications

• Manufacturer: Samwha Electric Co.

• Capacitance: 33µF

• Voltage Rating: 63V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 6.3mm Diameter x 11mm Height (Standard miniature layout)

• Lead Pitch (Spacing): 2.5mm

• Ripple Current: 151 mA rms
