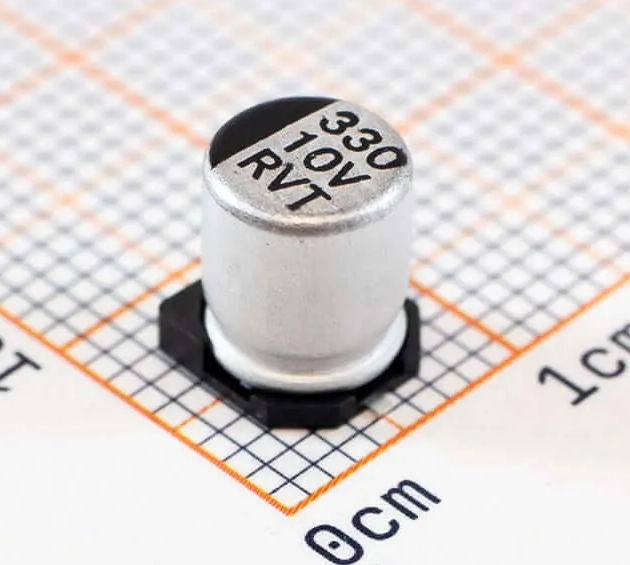

330uF 10V RVT1A331M0607 SMD Electrolytic Capacitors ROQANG D6.3xL7.7mm Aluminum RVT1A331M0607 ROQANG

Product Overview

A high-density, surface-mount aluminum electrolytic capacitor (V-chip style) manufactured by ROQANG. Belonging to the industry-standard RVT series, this component is rated for reliable operation up to 105°C. It is designed to provide substantial localized bulk capacitance in a relatively compact footprint, making it ideal for voltage stabilization, filtering, and decoupling on low-voltage digital power rails where board space is constrained.

Core Specifications

• Manufacturer: ROQANG

• Part Number: RVT1A331M0607

• Component Type: Aluminum Electrolytic Capacitor (RVT Series)

• Capacitance: 330 µF (Microfarads)

• Voltage Rating: 10V DC

• Tolerance: ±20% (M Tolerance Code)

• Package / Case Size: D6.3 x L7.7 mm (6.3mm Base Diameter by 7.7mm Can Height; Size Code: 0607)

• Mounting Type: Surface Mount Device (SMD) / V-Chip Base Plate

• Polarity: Polarized
