3300uF 25V Electrolytic Capacitor SAMWHA 85C 3300uF 25V

Product Overview

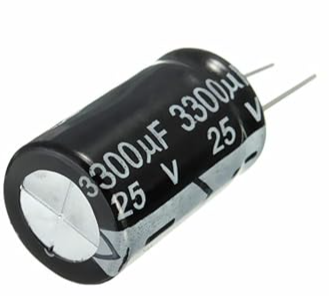

The Samwha 3300µF 25V electrolytic capacitor is a high-capacity, polarized radial-lead aluminum component designed for excellent smoothing ability and noise filtering. Typically belonging to Samwha's standard reliable lines (such as the SD series), it handles high ripple currents efficiently, making it an ideal choice for audio equipment, power supply units, and voltage regulation stages.

Core Specifications

• Manufacturer: Samwha

• Capacitance: 3300µF

• Voltage Rating: 25V DC

• Tolerance: ±20%

• Temperature Rating: 85°C

• Mounting Style: Radial Leaded (Through-hole)

• Typical Physical Dimensions: Approximately 16mm Diameter x 25mm Height

• Lead Pitch (Spacing): 7.5mm
