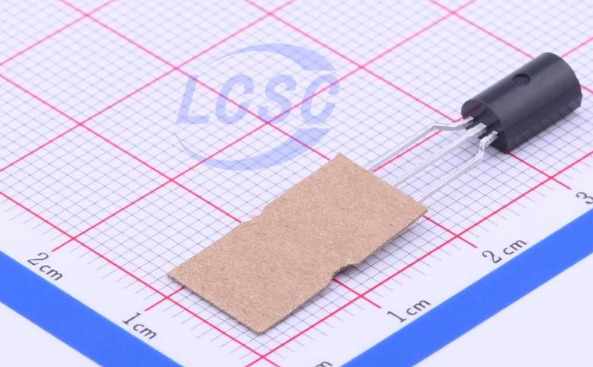

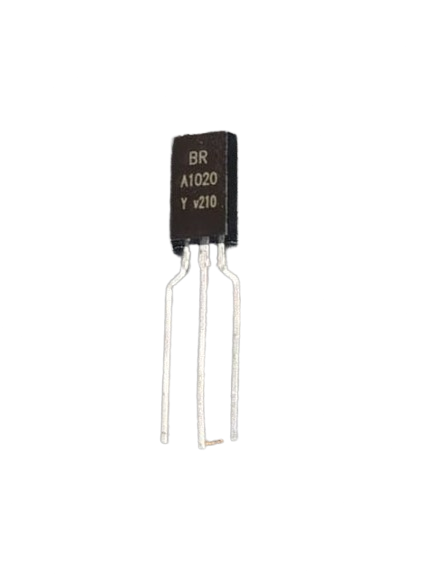

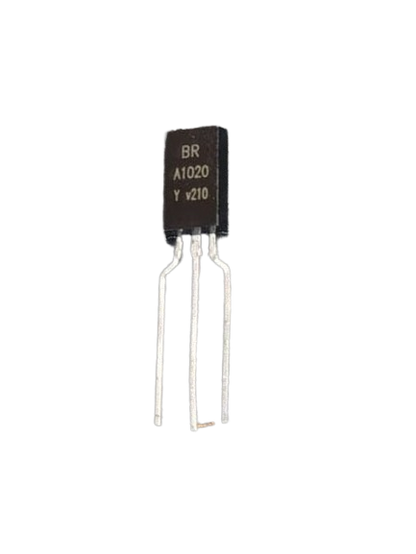

2SA1020-Y PNP Transistor 50V 2A A1020 BLUE ROCKET

Product Features:

• Silicon PNP transistor designed for power amplification and switching applications
• Collector-emitter voltage: -50V with continuous collector current up to -2A
• Low collector saturation voltage for efficient switching performance
• Fast switching with turn-on and turn-off times of 0.1μs
• DC current gain (hFE): 70–240 with transition frequency up to 100MHz
• Complementary pair to 2SC2655 for suitable circuit design applications
• Suitable for power amplifiers, power supplies, and switching circuits

Manufacturer: BLUE ROCKET
Manufacturer Part Number: 2SA1020-Y
Package: TO-92LM
Marking Code: A1020 / O / Y
Mounting Type: Through-Hole (THT)
