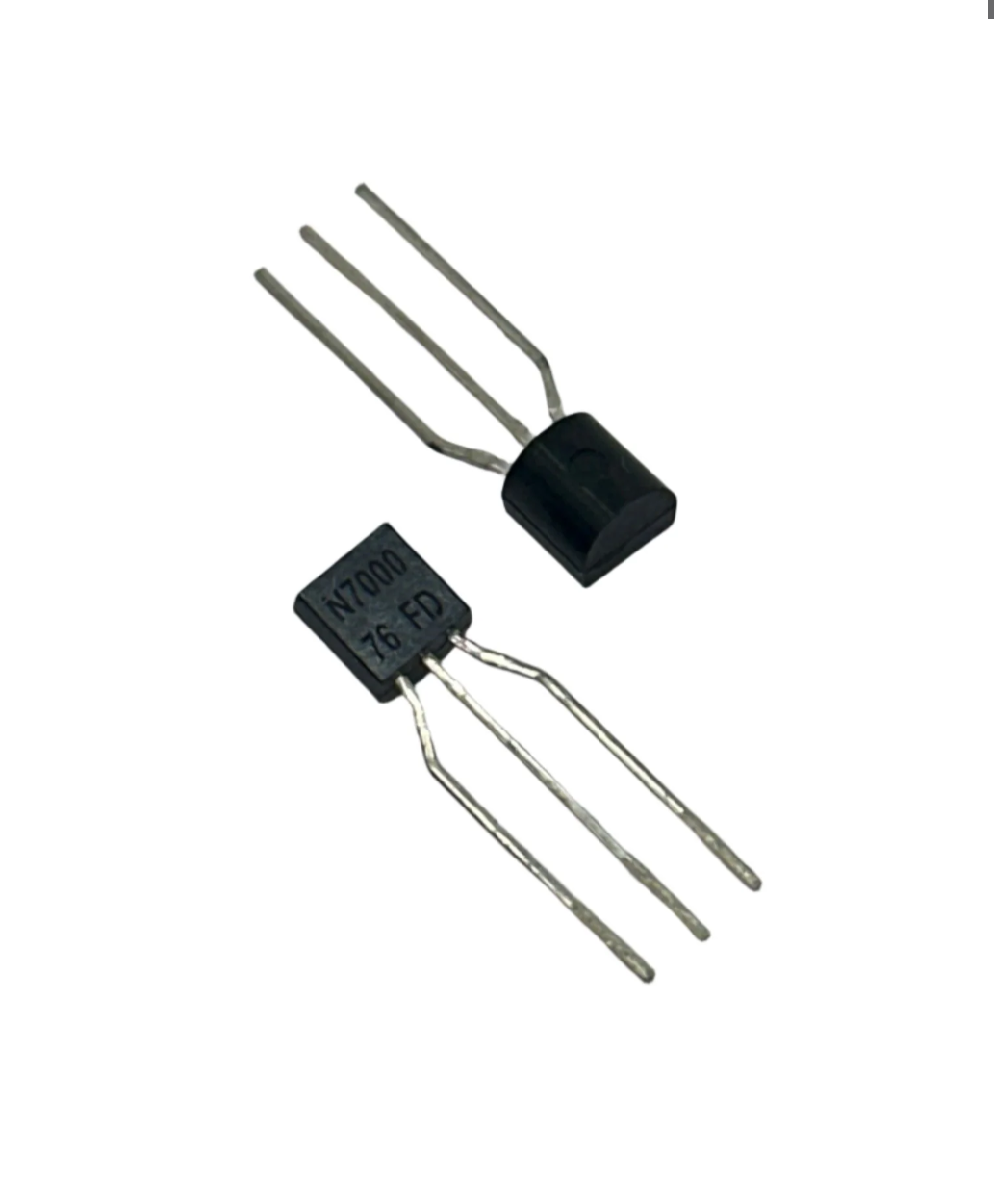

2N7000 MOSFET N Channel PVC 60V 800mA UTC 2N7000

Product Overview: A through-hole N-Channel enhancement mode field-effect transistor designed for low-power, high-speed switching applications. It features a low turn-on voltage and low gate threshold, making it highly compatible with TTL and CMOS logic levels directly from microcontrollers. This highly popular, versatile small-signal component is widely used in low-current switching, logic level translation, line drivers, and relay or LED control circuits.

Core Specifications:

Manufacturer: UTC (Unisonic Technologies Co.)

Package Type: TO-92

Function: N-Channel MOSFET

Maximum Drain-Source Voltage: 60V

Continuous Drain Current: 200mA (800mA Pulsed Current IDM)

Specific Variant: 2N7000
