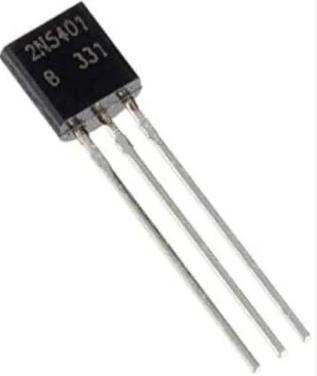

2N5401 Transistor 150V 600mA PNP TRANSISTOR CDIL 2N5401

Product Overview

The 2N5401 is a high-voltage, small-signal PNP transistor designed for applications requiring high-voltage tolerance and low-to-medium current switching. Due to its ability to handle up to 150V, it is frequently used in high-voltage differential amplifiers, telephone line interface circuits, and as a driver transistor for high-voltage output stages. It is the PNP complement to the widely known 2N5551 (NPN) transistor, making them an excellent pair for complementary circuit designs.

Core Specifications

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-92 (Through-Hole)

• Component Type: PNP Silicon Transistor (Complement to NPN 2N5551)

• Collector-Emitter Voltage ($V_{CEO}$): -150V

• Collector-Base Voltage ($V_{CBO}$): -160V

• Emitter-Base Voltage ($V_{EBO}$): -5V

• Continuous Collector Current ($I_C$): -600mA

• Power Dissipation ($P_{tot}$): 625mW (at $T_A = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 50 to 240 (at $I_C = 10mA, V_{CE} = 5V$)

• Transition Frequency ($f_T$): 100 MHz (Minimum)

• Marking Code: 2N5401

• Part Number: 2N5401
