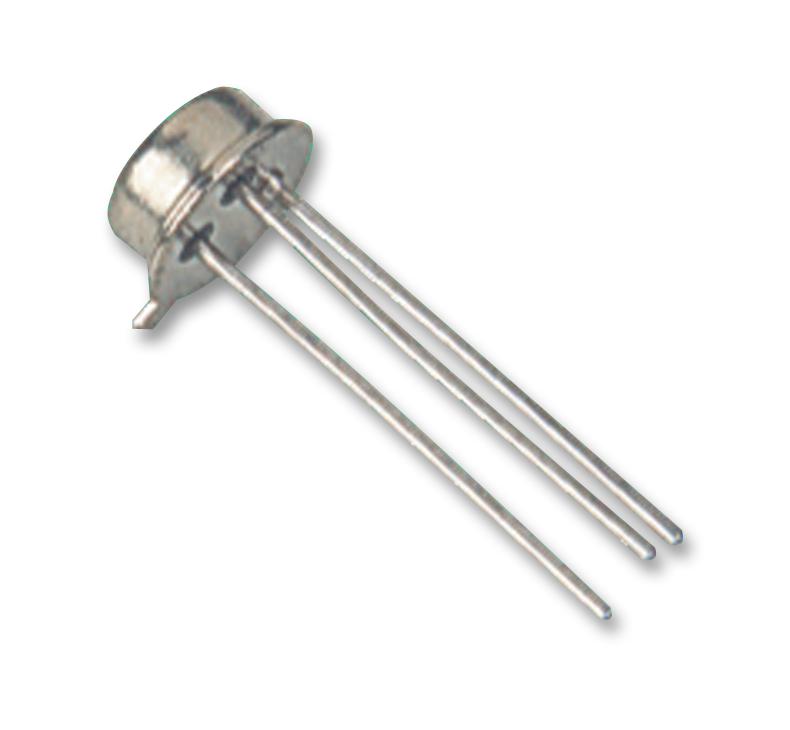

2N3440 Transistor CDIL NPN Transistor 2N3440

Product Overview

The 2N3440 is a high-voltage, silicon NPN power transistor designed for linear amplification and high-voltage switching applications. It is particularly well-regarded for its performance in high-speed, high-voltage circuits, such as video output stages, gas discharge lamp drivers, and general-purpose power regulation. Housed in a durable TO-39 metal can package, it offers excellent thermal stability and reliability in demanding electronic environments.

Core Specifications

• Manufacturer: CDIL (Continental Device India Limited)

• Package Type: TO-39 (Metal Can)

• Component Type: NPN Silicon Power Transistor

• Collector-Emitter Voltage ($V_{CEO}$): 250V

• Collector-Base Voltage ($V_{CBO}$): 300V

• Emitter-Base Voltage ($V_{EBO}$): 7V

• Continuous Collector Current ($I_C$): 1A

• Power Dissipation ($P_{tot}$): 5W (at $T_C = 25^\circ C$) or 1W (at $T_A = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 40 to 160 (Typical @ $I_C = 20mA, V_{CE} = 10V$)

• Marking Code: 2N3440

• Part Number: 2N3440
