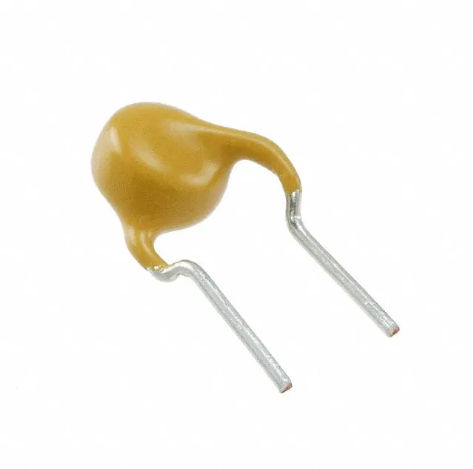

Type: PPTC Resettable Fuse
Series: TRF250 / TRF600
Hold Current: 55mA–400mA
Trip Current: 160mA–1A
Operating Voltage: 60V DC / 250V AC or 250V DC / 600V AC
Interrupt Current: 3A
Operating Temperature: Not Specified
Mounting: Through-Hole (Radial)
Lead Material: Tin-Plated Copper, 22AWG
Insulating Material: Cured Epoxy Polymer, UL 94 V-0
Compliance: RoHS / UL 1434 / CSA / EN 60730-1
Manufacturer: Littelfuse
Part Number: TRF250-080
