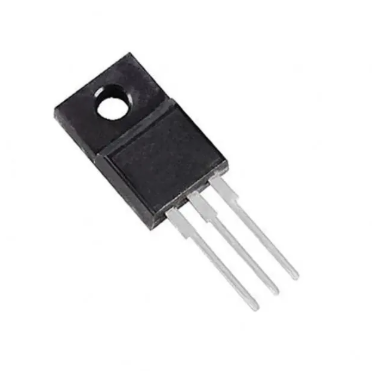

24NM80L-Q MOSFET N-CHANNEL SUPER-JUNCTION TO-220F1 UTC 24A 800V UTC 24NM80L-Q

Product Overview:

A through-hole N-Channel Super-Junction Power MOSFET engineered for high-voltage, high-efficiency, and high-speed power switching applications. Utilizing an advanced super-junction architecture, this device achieves an exceptionally low on-state resistance ($R_{DS(on)}$) and a minimized gate charge, significantly reducing both conduction and switching power losses to optimize overall system efficiency.

Packaged in an isolated TO-220F1 enclosure (Full-Pack), it isolates the electrical connections from an attached heatsink without requiring extra insulation hardware, streamlining mechanical design and saving assembly time. It features enhanced $dv/dt$ ruggedness, ultra-fast switching response times, and robust avalanche characterization to maintain highly reliable performance under extreme transient voltages and harsh electrical stresses. This component is highly optimized for demanding high-voltage power electronics architectures, including AC-DC converters, switch-mode power supplies (SMPS), active power factor correction (PFC), and high-frequency pulse-width modulation (PWM) switching systems.

Core Specifications:

• Manufacturer: UTC (Unisonic Technologies Co., Ltd.)

• Package Type: TO-220F1 (Isolated Full-Pack)

• Function: N-Channel Super-Junction Power MOSFET

• Maximum Drain-Source Voltage: 800V

• Continuous Drain Current: 24A (at 25°C)

• Specific Variant: 24NM80L-Q
