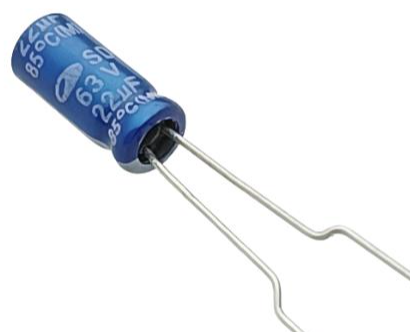

22uF 63V Electrolytic Capacitor SAMWHA 5x11mm 22uF 63V

Product Overview

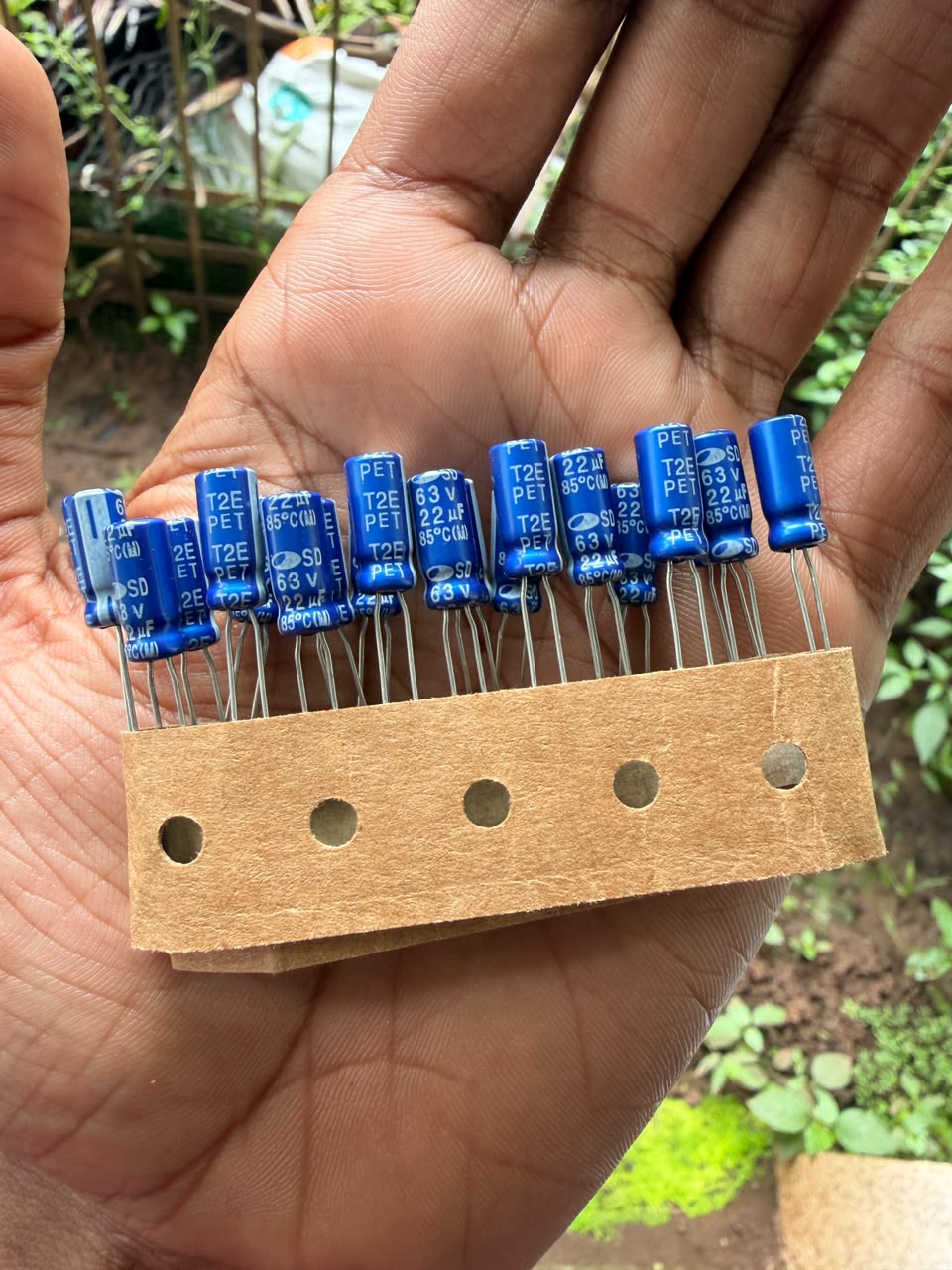

The Samwha 22µF 63V electrolytic capacitor is a high-voltage, compact polarized aluminum through-hole component. Typically part of Samwha’s high-reliability general-purpose lines (such as the SD or SM series), this capacitor is engineered for signal coupling, high-frequency decoupling, and intermediate power smoothing in constrained electronic environments.

With its sub-miniature 5x11mm footprint, it is an excellent choice for audio signal paths, analog sensor circuits, and low-current power stages where vertical space is limited but a higher voltage rating is required.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 22µF (Microfarads)

• Voltage Rating: 63V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SD variant)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 5mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2mm to 2.5mm
