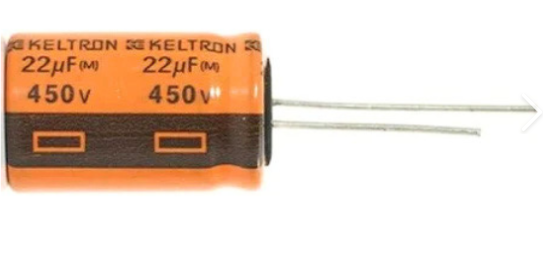

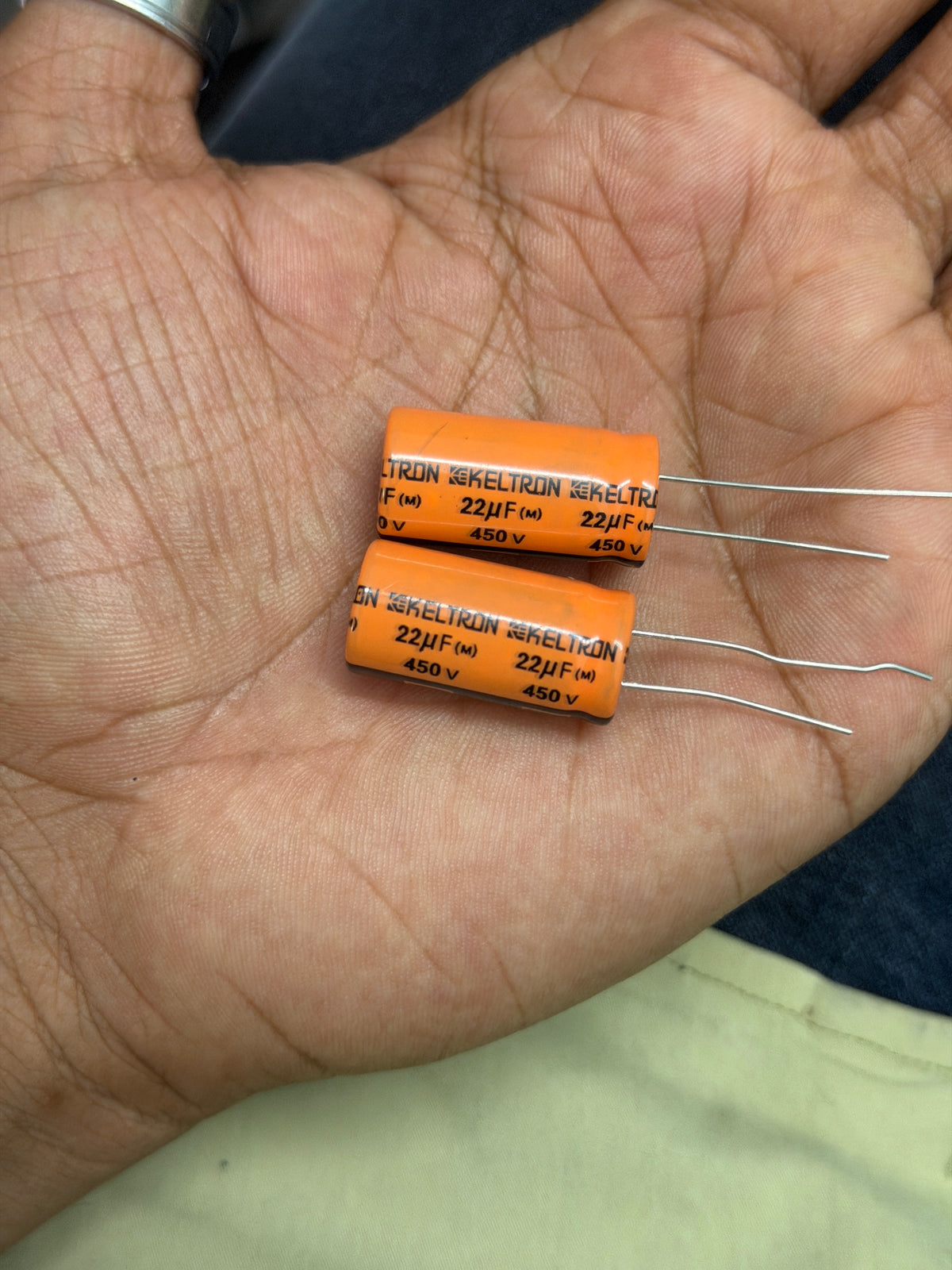

22uF 450V Electrolytic Capacitor KELTRON 85C 22uF 450V

Product Overview

The Keltron 22µF 450V electrolytic capacitor is a high-voltage, polarized radial-lead component designed for reliable energy storage, DC power smoothing, and ripple suppression in demanding electronic circuits. It is commonly used in power supply units, SMPS (Switched-Mode Power Supplies), LED drivers, and other high-voltage applications where compact size and stable performance are required.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 22µF

• Voltage Rating: 450V DC

• Operating Temperature: 85°C

• Tolerance: ±20%

• Mounting Style: Radial (Through-hole)

• Typical Physical Dimensions: Approximately 12.5mm x 25mm (can vary by manufacturing batch)
