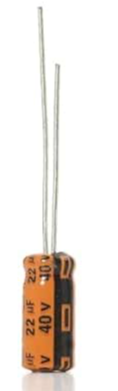

22uF 40V Electrolytic Capacitor KELTRON 22uF 40V

Product Overview

The Keltron 22µF 40V electrolytic capacitor is a polarized, radial-lead aluminum through-hole component built for general-purpose filtering, decoupling, and low-frequency smoothing. Belonging primarily to Keltron's reliable standard SA Series, this miniature capacitor provides stable, cost-effective performance in consumer electronics, audio signal sub-circuits, and low-to-medium voltage power paths.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 22µF (also marked as 22 MFD)

• Voltage Rating: 40V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SA variant)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 5mm to 6.3mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2mm to 2.5mm
