22uF 250V Electrolytic Capacitor SAMWHA 85C 22uF 250V

Product Overview

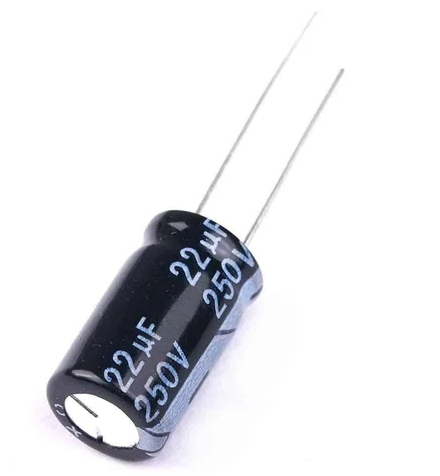

The Samwha 22µF 250V electrolytic capacitor is a high-voltage, polarized radial through-hole component. Typically belonging to Samwha’s standard general-purpose lines (such as the SD or SK series), this capacitor is engineered for primary DC smoothing, power factor correction filtering, and energy storage in high-voltage circuits.

With a 250V rating and a compact 22µF capacitance, it is a frequent choice for filtering the rectified DC output in LED drivers, electronic ballasts, small switch-mode power supplies (SMPS), and line-voltage control circuits.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 22µF (Microfarads)

• Voltage Rating: 250V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 10mm to 12.5mm Diameter x 16mm to 20mm Height

• Lead Pitch (Spacing): 5mm
