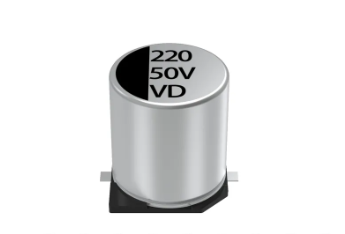

220uF 50V VP1H221M0810 SMD Electrolytic Capacitors Honor Elec ±20% Aluminum Honor Elec VP1H221M0810

Product Overview

A high-performance, surface-mount aluminum electrolytic capacitor manufactured by Honor Elec. Combining a substantial 220 µF capacitance reservoir with a heavy-duty 50V rating, this component is engineered for power supply filtering, bulk decoupling, and ripple current suppression on medium-to-high voltage power rails. It is widely used in DC-DC converters, motor drive circuits, and industrial control modules where reliability under load is critical.

Core Specifications

• Manufacturer: Honor Elec (Honor Electronics)

• Part Number: VP1H221M0810

• Component Type: Aluminum Electrolytic Capacitor (VP Series)

• Capacitance: 220 µF (Microfarads)

• Voltage Rating: 50V DC

• Tolerance: ±20% (M Tolerance Code)

• Package / Case Size: D8.0 x L10.0 mm (8mm Base Diameter by 10mm Can Height; Size Code: 0810)

• Mounting Type: Surface Mount Device (SMD) / V-Chip Base Plate

• Polarity: Polarized
