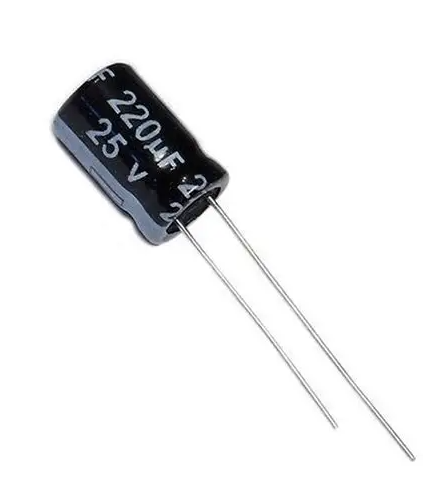

220uF 25V Electrolytic Capacitor Samwha 85C 220uF 25V

Product Overview

The Samwha 220µF 25V electrolytic capacitor is a polarized, radial leaded through-hole component designed for standard electronic applications. Typically belonging to Samwha's general-purpose lines (such as the SD series), this capacitor is widely utilized for DC voltage decoupling, low-to-medium frequency signal filtering, and power rail smoothing.

Its balanced capacitance and 25V rating make it a staple component in consumer electronics, audio subsystems, and power regulation circuits operating on common low-voltage rails.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 220µF (Microfarads)

• Voltage Rating: 25V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 6.3mm to 8mm Diameter x 11mm to 11.5mm Height

• Lead Pitch (Spacing): 2.5mm to 3.5mm
